Snap-Fit Assembly Racing Car

Made by a Guest

Created 1 months ago

Automotive, RC & Hobbyassembly-toypress-fittoy-carmulti-partno-supportssnap-fitflat-pack
Remix this model →

Description

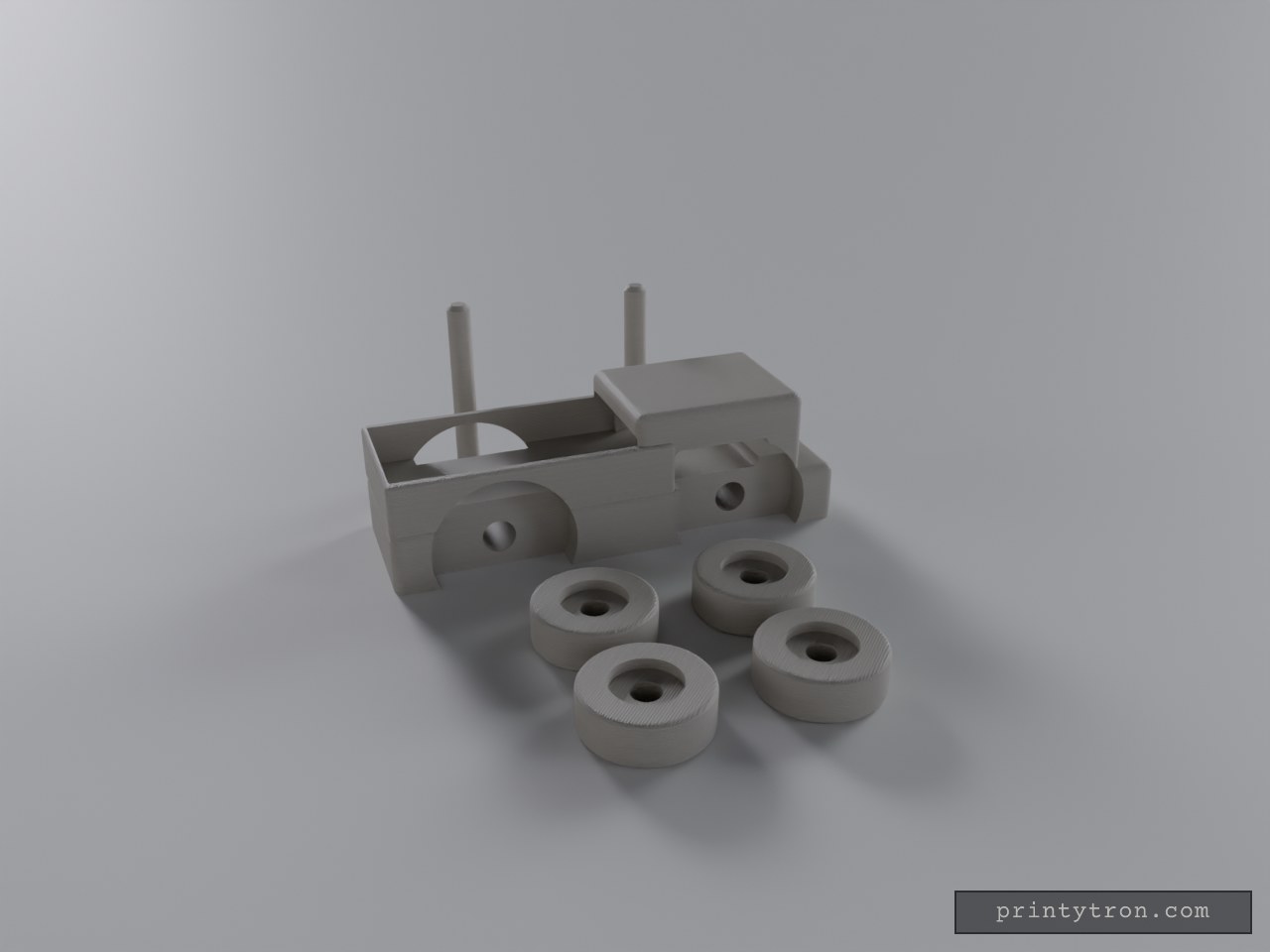

A 7-piece flat-pack assembly car. The chassis is a solid block with a hollowed pillar cabin and deeply recessed wheel wells, keeping the 22mm wheels tightly tucked. The axles press-fit into the wheels while spinning freely through the body.

Remixing and clearances

The critical dimensions are simple to tweak if you want to swap styles or tune the fit:

  • Axle clearance: The axles are 5.0mm diameter, press-fitting into 5.15mm holes in the wheels. If your printer over-extrudes, scale the axles down by a fraction of a percent.
  • Body spin: The chassis holes are 6.5mm, giving a loose, friction-free spin.
  • Wheel wells: Currently 28mm diameter cutters for a 22mm wheel. You can size the wheels up to 25mm before they start rubbing the chassis.
  • Stance: The axles are 38mm long. The chassis spans 30mm, leaving exactly 4mm on each side for the wheels to sit flush in their wells.
