Soporte de tarjetas con estrella grabada
Created today
Description
Soporte de tarjetas en forma de bloque rectangular, con una ranura central de extremo a extremo y una estrella de cuatro puntas con lados curvos grabada hacia el interior de la cara frontal. La ranura mide 5 mm de ancho y 10 mm de profundidad, y el bloque mide 115 × 25 × 20 mm con bordes achaflanados. Se imprime como una pieza única, sin soportes, apoyado sobre su base.
Puntos para remezclar
- Ranura: 5 mm de ancho y 10 mm de profundidad. El ancho es la cota que decide qué tarjetas entran; súbelo si necesitas tarjetas plastificadas o más gruesas.
- Estrella frontal: 16 mm de punta a punta, hundida 1,5 mm y centrada. Puedes cambiar el motivo o su escala sin tocar la ranura.
- Bloque: 115 × 25 × 20 mm. El largo y el alto dan margen para una base más estable o una versión más compacta.
- Variantes y parejas: una ranura más ancha pide un bloque algo mayor; como organizador de tarjetas de visita o de identificación, combina bien con un escritorio o una entrada.
Images
More like this
Explore more in Storage & Organization →
Gaveta Vertical Mini APH Pocket
Uma gaveta vertical de bolso, no espírito de um canivete suíço de primeiros socorros: o puxador largo no topo é também a tampa, e puxá-lo para cima faz a bandeja subir pelas guias, expondo os itens. Notas de projeto Corpo 86 × 52 × 127 mm, parede de 1,6 mm, dois drenos de ø 3 mm e furo de ø 4 mm para cordão. Bandeja 78 × 47 × 125 mm com tampa de 90 × 56 × 8 mm, recorte de dedo e divisórias. Clipe em J de 40 mm, 2,6 mm de espessura, impresso deitado. Pensado para PETG, sem suportes. Versão simplificada: dentes de retenção, rabo-de-andorinha, berço do oxímetro e batente liberável ainda não modelados.
Print-In-Place Advent Drawers
What it's for This is a fully assembled, print-in-place advent calendar and organizer. All 24 numbered drawers print inside the frame at once with no assembly required. It features integrated sliding tracks and built-in stops that prevent the drawers from being accidentally pulled out all the way. The design is oriented to print flat on its back. This allows the raised numbering and front pull-tabs to print perfectly on the top surface without any supports or bridging issues. Dimensions Overall Assembly: 169.5 mm wide × 169.5 mm high × 42 mm deep. Drawer Outer: 39.5 mm wide × 25.5 mm high × 39.5 mm deep. Drawer Inner (usable): 36.5 mm wide × 22.5 mm high × 36.5 mm deep (perfectly sized for standard 35 mm tealights or small treats). Clearances: 0.5 mm on all sides for smooth, bind-free sliding. Print notes Supports: None. The entire unit bridges perfectly on its own. Build Plate: Fits easily on a 180 × 180 mm bed (like the Bambu Lab A1 Mini). Clearance: Designed with extremely generous 0.5 mm gaps. Ensure your printer is not severely over-extruding to guarantee the drawers snap free immediately.

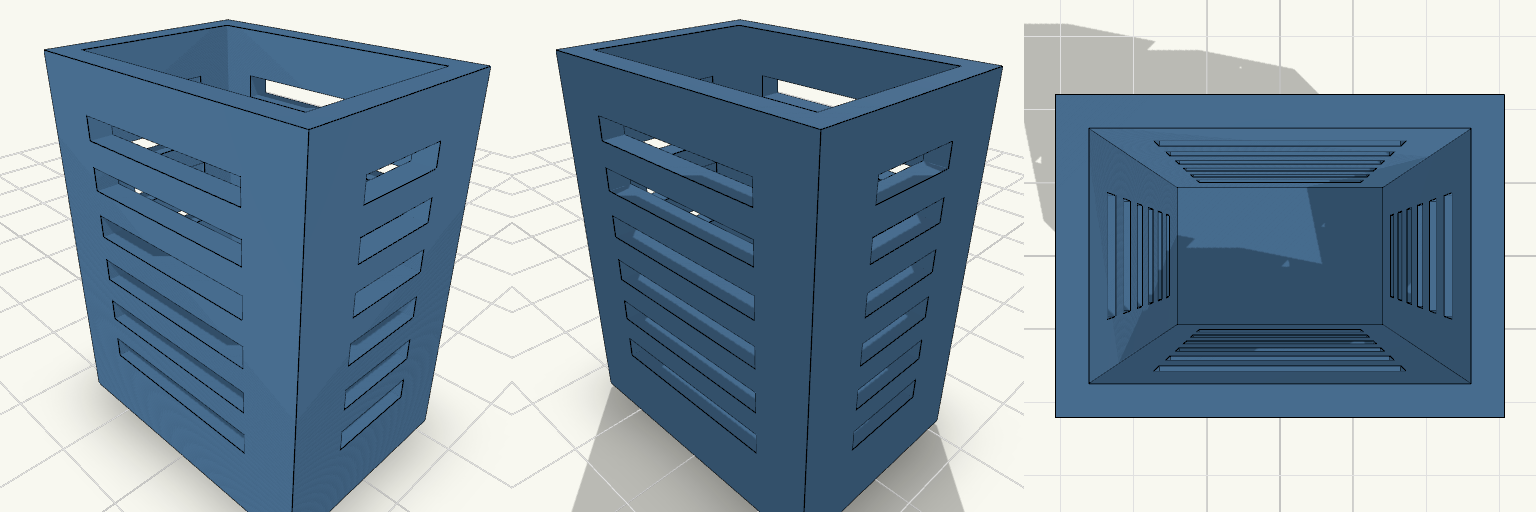

ORBISVENTILATION
Botvent is a plain, tall rectangular holder for a 9V battery, with rows of horizontal vent slots that give it a machine-panel look. No base plate, no add-on parts: just a clean open-top shell. Features Open-top box, 27.2 × 18.2 mm cavity 2.4 mm walls and floor Six horizontal vent slots on each face Square edges, 40 mm tall Print notes Prints upright with no supports needed for the slots at typical settings.

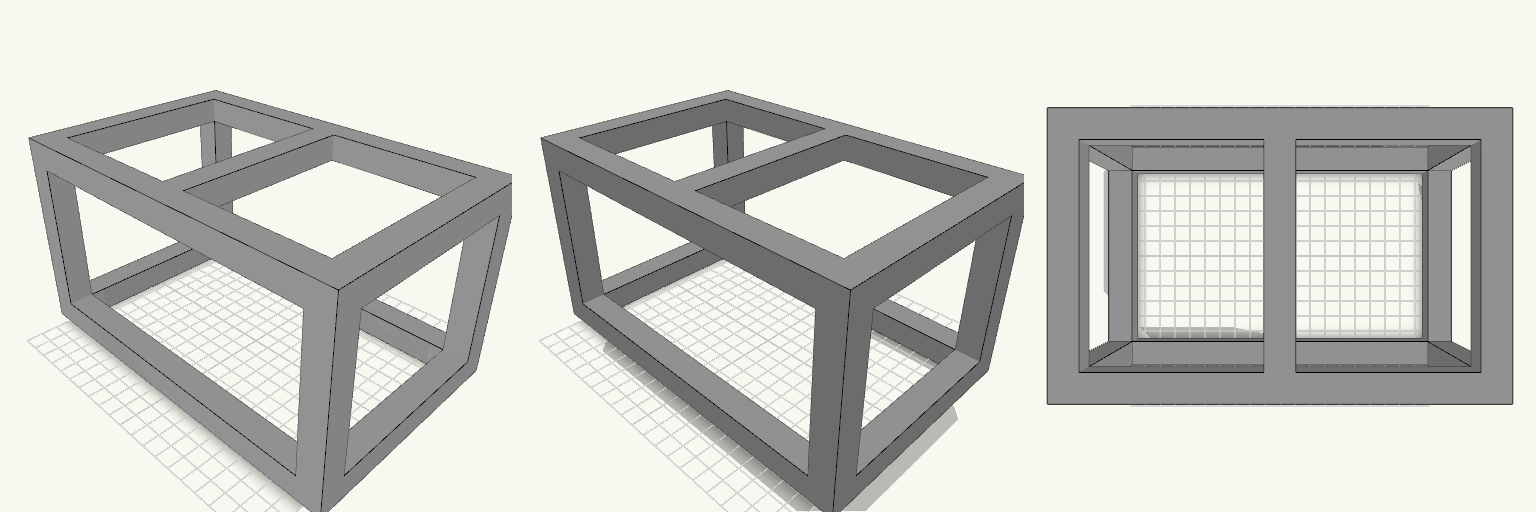

220x140x120 mm Square-Bar Storage Frame
