Space Command Console Toy
Created today
Remixed once
Description
The keyboard belongs to you. The TV remote belongs to you. The oven dials are strictly off limits. But they still want to press buttons, and everything they reach for has a consequence.
This console solves that. It’s a chunky, slanted control panel built to take a hammering. The throttle is a captive slider that prints fully in place—no assembly, just crack it loose and it glides. The giant red and green buttons sit on thin printed hinges, giving them enough flex to feel like a real press without needing actual springs or hardware. The dials and radar screen are solid topographic features that add tactile feedback without weak points.
Printing Notes
- Dimensions: The base fits squarely on a 180x130mm footprint.
- Print-in-Place Clearance: The slider runs in an internal T-slot with a generous 0.5mm clearance on all sides, making it easy to free up on almost any FDM machine.
- Orientation: Designed to sit entirely flat on the build plate. The 13-degree slope of the panel is built into the geometry, so the internal bridges and tracks print parallel to the bed.
- Settings: Standard 0.2mm layer heights work beautifully. Three perimeters recommended to keep the compliant button hinges tough.
Images
More like this
Explore more in Automotive, RC & Hobby →
20
Model truck wheels usually snap at the hub or require a nest of supports just to print the rims. This one prints entirely flat on the bed, bridging cleanly across the inner rim recess, with treads chunky enough to actually grip rough surfaces instead of spinning out. Specifications Diameter: 80 mm Width: 30 mm Axle: 8 mm hex shaft Print orientation: Flat on its side (no supports needed)
7-Camion
This is a rugged, heavy-duty truck wheel designed to anchor the front-left corner of a modular exhibition chassis. Coming in at 78mm in diameter, it features a deep-dish rim, aggressive sidewall tread cuts, and a prominent central hub studded with hex lug nuts. Fabrication Notes Print Orientation: Flat on its back face. Overhangs: Sloped internal cavities mean it requires absolutely zero supports. Interface: Features an 8.2mm central clearance bore to slide onto standard chassis axles. Strength: Designed thick with minimal internal bridging for high impact resistance.
jgdfjhgmjvgkhlb

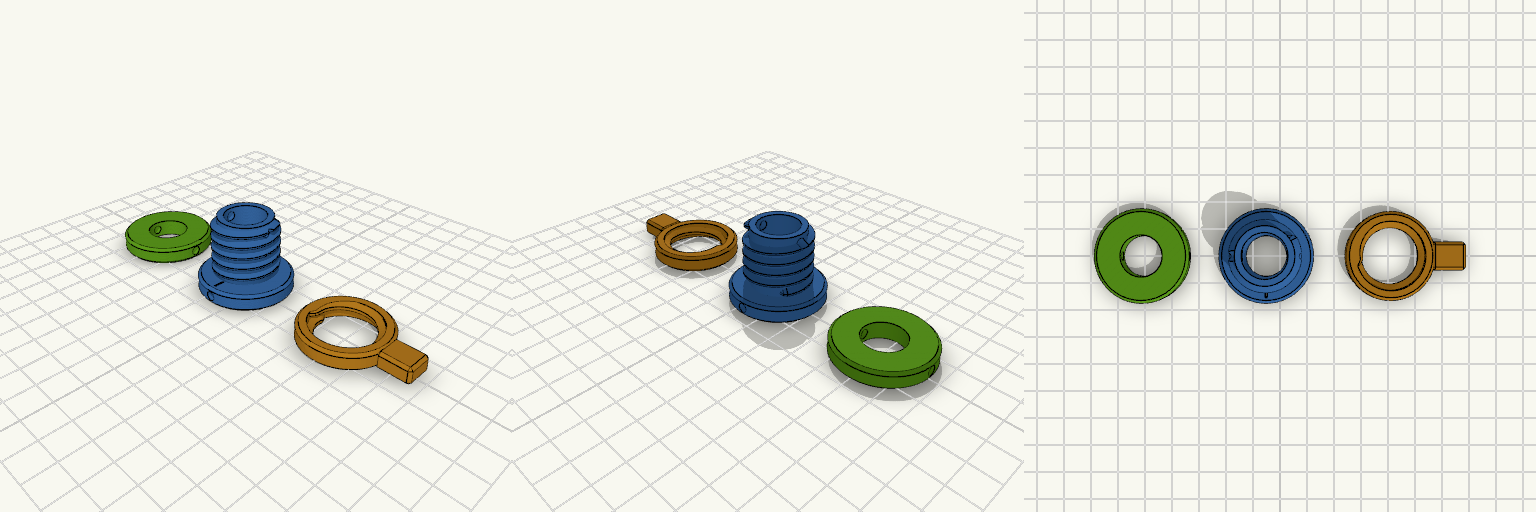

A compact, print-in-place traveling nut mechanism designed to mount onto a 15mm diameter shaft. This stopper locks rotation exactly at 900 degrees (2.5 turns) in either direction. The inner blue sleeve slides over your 15mm shaft and secures with a standard M3 bolt and captive nut, while the outer orange traveler moves up and down the internal threads as the wheel turns. Fitment and Constraints Host Shaft: 15mm diameter. The bore is modeled at 15.2mm to allow for a snug fit. Rotation Limit: Exactly 900 degrees (2.5 turns), enforced by rigid top and bottom flanges. Assembly: Print-in-place. The mechanism prints fully assembled with 0.4mm radial clearance in the threads, permanently capturing the traveler nut between the outer flanges so it cannot back off. Installation Requirements: You must have a fixed block or housing wall nearby for the traveler nut's side tab to ride against; this prevents the nut from simply spinning with the shaft and forces it to travel linearly.
