SumaSlide — Tablero Matemático con Carriles
Created today
Remixed 2 times
Description

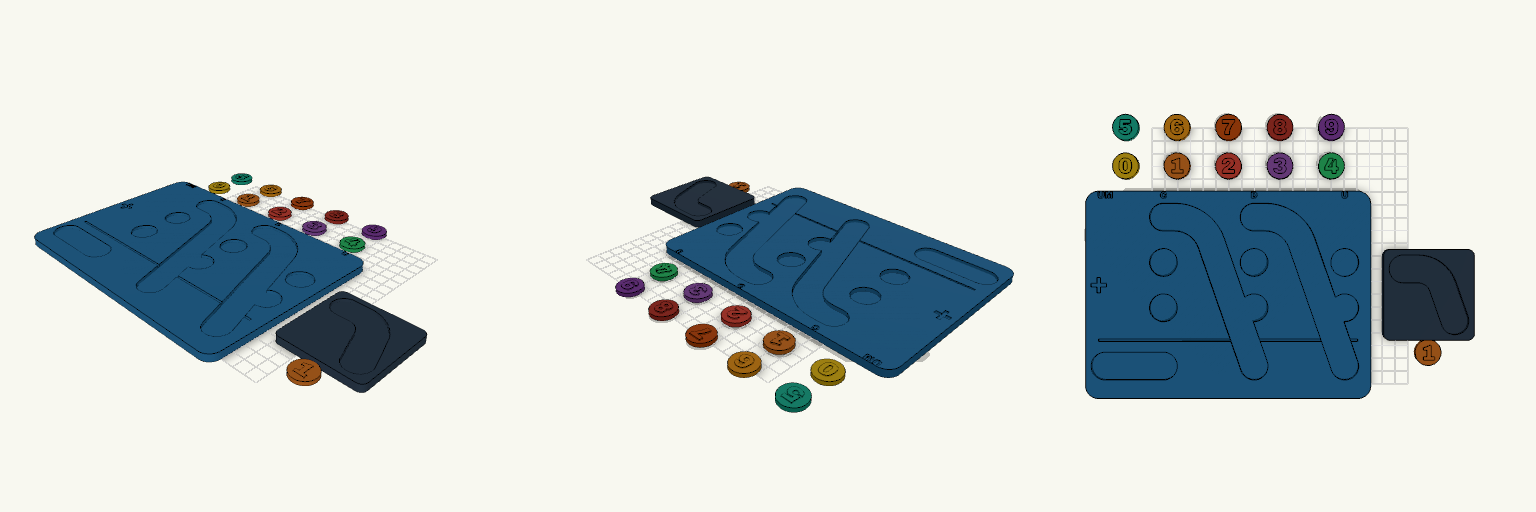

SumaSlide convierte la abstracción de las sumas con llevadas en un proceso mecánico y tangible. Diseñado con tres vías de deslizamiento fresadas en la base, permite que la ficha del "1" sobrante no se levante de la mesa, sino que viaje físicamente hacia arriba y a la izquierda hasta coronar la columna siguiente.
La columna de millares incluye un canal de caída directa: la llevada final se desliza hasta su posición de resultado sin interrupciones.
Dimensiones y Tolerancias
- Base Principal: 220 × 160 × 6 mm.
- Fichas: 20 mm de diámetro y 4 mm de altura total (texto en relieve incluido).
- Canales de deslizamiento: 21.5 mm de ancho por 2.5 mm de profundidad. La holgura asegura que las fichas deslicen libremente sin volcarse.
Impresión
Todas las piezas están diseñadas para imprimirse apoyadas en plano directamente sobre la cama, sin necesidad de soportes. Imprime múltiples copias de las fichas para resolver operaciones que requieran repetir números.
Images
More like this
Explore more in Workshop & Tools →
SumaSlide — Tablero Matemático con Carriles
SumaSlide convierte la abstracción de las sumas con llevadas en un proceso mecánico y tangible. Diseñado con tres vías de deslizamiento fresadas en la base, permite que la ficha del "1" sobrante viaje físicamente hacia arriba y a la izquierda hasta coronar la columna siguiente. Esta versión ajusta la cabecera e incorpora un módulo de test para verificar tolerancias de deslizamiento antes de lanzar el tablero completo. Ajustes y Componentes Pieza de prueba: Tramo corto con curva idéntica a la principal, ideal para comprobar que las fichas fluyen sin atascos. Cabecera rediseñada: Texto encogido y desplazado al borde superior para garantizar un recorrido limpio y seguro. Separación de objetos: Todo está dispuesto en una misma plataforma virtual; divídelo en objetos independientes desde tu fileteador para imprimir por separado.
Self-Centering V-Block Finder
A precision marking tool designed to locate the exact center of round and square stock. Eliminates the need to eyeball center lines when preparing material for drilling, turning, or joining. What it's for Self-Centering Base: A 90-degree V-groove securely seats the tool on both round dowels and square cuts. Tapered Pencil Slot: The marking slot tapers from 6mm down to a 1.5mm slit, physically forcing the pencil lead onto the true center line. Corner Relief: The apex of the V-groove includes a circular relief, preventing the sharp corners of square stock from binding. Dimensions Stock Compatibility: Accommodates material widths from 10mm up to 60mm. Overall Size: Measures roughly 86mm wide and 90mm long. Base Plate Thickness: The main plate is 4mm thick, providing a rigid straight edge. Remix ideas Extend the length of the plate and slot for marking deeper along the stock. Widen the V-arms to accommodate larger stock sizes like fence posts. Modify the slot taper to perfectly capture a specific mechanical pencil or marking knife.
Experimental Filter Housing V1
A multi-part FDM-optimized housing for testing granular and particulate filter media. Designed with discrete chambers, retaining grids, and standard O-ring sealing surfaces. Disclaimer: This is a strictly non-certified prototype for experimental projects. Do not use for certified respiratory protection. What it's for Testing layered filtration concepts. The housing accommodates a 26mm deep granular adsorption bed and an 8–10mm particulate filter section, separated by an air-distribution spacer. Media is retained by drop-in mesh grids, allowing rapid replacement during testing. Dimensions Overall Assembled Size: 80 mm diameter × 55 mm length Wall Thickness: 3 mm main shell Adsorption Chamber: 68 mm ID × 26 mm depth Connections: Rear standard 3-tab quarter-turn bayonet (35 mm OD tube) Print notes Orientation: Parts are laid out flat on the bed. The front cap should be flipped 180° in your slicer so its top face rests on the build plate. Supports: None required. The bayonet tabs are modeled with a 45° chamfer profile to print cleanly without support material. Tolerances: Threaded interfaces are built with 0.5–1mm diametrical clearances to accommodate standard PETG shrinkage.
Robust 3-Way Irrigation Manifold
A heavy-duty 1-to-3 splitter manifold designed for 5 mm ID irrigation hose. It prints completely flat on its base without supports, using teardrop-shaped mounting bosses to bridge the overhangs. To meet the structural requirement of 4 solid perimeters on a 5.4 mm outer barb, the internal channel strictly inside the hose stems necks down to 2.6 mm. Inside the thick bosses and the main manifold body, the passages open up to 5 mm and 7 mm respectively to minimize flow restriction. Remix Hooks Barb Spacing & Count: Adjust the port_solid() module to add more barbs or change the spacing for stiffer tubing. Port Layout: Expand the main body length and loop the for(x = ...) call to add 4, 5, or 6 outlets. Mounting: The flat rectangular body leaves plenty of room to cut countersunk screw holes if you need to hard-mount it to a rail or planter box.
LockDrop — Packout Cup Holder
A rugged, drop-in cup holder designed to integrate perfectly with the Packout system. Secures easily onto any standard Packout lid using an integrated twist-lock cleat that sits flush for straightforward 3D printing. The main body accommodates standard tumblers and bottles while the heavy-duty walls and gussets ensure side-load stability. Features Twist-Lock Cleat: Drops into standard female Packout receivers with a friction fit. Flush Base Construction: Designed to print cleanly without complex supports for the bottom locking mechanism. Heavy-Duty Walls: Thickened sides with structural gussets engineered for shop environments. Front Branding: Embossed Milwaukee logo wrapping the front curve for a finished tool aesthetic. Drainage: Integrated center channel prevents liquid and debris buildup.
Carpenter Pencil Sharpener Block
