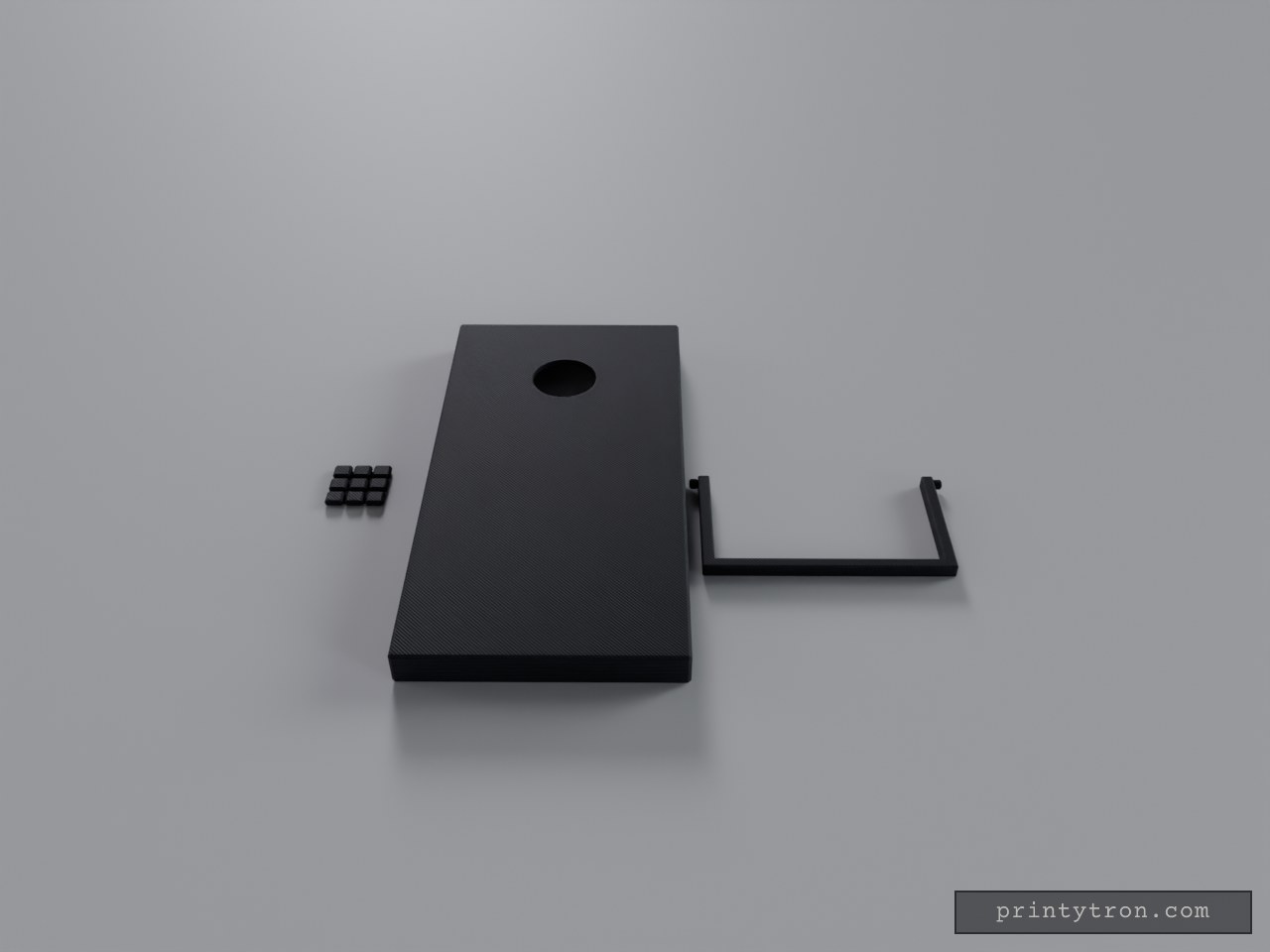

A desktop-scale modular cornhole kit scaled to a 175mm deck length, complete with a print-in-place flexure bag that collapses to clear the main bore.
The deck prints upside down (or flat) to avoid supports inside the main cavity, while the folding leg frame snaps securely into the 4.2mm frame hinges.
Photos
Technical views
Gancho de garrafa de treino em J, 200 mm, com braçadeira bipartida na base: corpo fixo ligado à haste e tampa separada que fecha por encaixe de pressão ao redor da alça de 12 × 24 mm. Pontos de remix Snap-fit: ganchos flexíveis de 8 mm de comprimento, 1,8 mm de espessura e ressalto de 0,6 mm (armlen, armt, ridge). Entrada em rampa, retenção reta. Folga: 0,2 mm entre tampa e corpo (gap). Trava extra: furo M3 em gota atravessando tampa e corpo, com porca sextavada embutida no lado +X. Paredes: wallx (6,4 mm) e wallf (7,5 mm) definem o tamanho externo; reduza se o furo M3 for dispensado. Haste e gancho: inalterados, seção 10 × 14 mm, bojo de 40 mm, boca de 34 mm. Combina com: parafuso M3 e porca M3 (opcionais); imprima corpo e tampa separados em PETG ou PLA.
A single-arm servo horn for the SG90 micro servo, with a 3.2 mm linkage hole 12 mm from the output shaft centre. Fitment Fits: SG90 and compatible 9 g servos with the 21-tooth, ~4.8 mm output spline. Does not fit: MG90S metal-gear servos with a different spline count, or 25T servos such as MG995/MG996. Arm: 12 mm centre distance, 4 mm thick, rounded edges. Check before printing Test the spline bore on a scrap print. Bore size is ~4.9 mm with small tooth notches, and printer tolerance varies. Adjust it if the fit is loose or tight. The part prints flat with no supports, and PLA works.
Straight and curved RC track pieces sized to fit a 250 x 250 mm print bed, using the same 90 mm wide track and bulb-and-socket latch as the rest of the set. What it fits Built for printers with a 250 x 250 mm bed or larger. Mates with the existing 90 mm wide pieces (80 mm clear lane, 5 mm rails) through the same latch with 1 mm clearance. Pieces Straights: 50 mm and 150 mm (the 200 mm straight also fits). 180° hairpin at 70 mm centreline radius, about 230 mm wide. 30° at 250 mm radius, 45° at 200 mm, 60° at 150 mm, 90° at 120 mm. Check before printing The footprint of each piece is measured from the model, but measure your bed's usable area, since brims and clips reduce it. Does not fit The earlier 180° hairpin at 100 mm radius, the main junction (about 440 mm) and the multi-way junctions are larger than a 250 mm bed. The latches have not been test-fitted.
What it's for 30×40 mm 底板,前端带两片独立固定耳片,用于锁 SG90 舵机自带的安装耳。 Dimensions 底板 30×40×2 mm,圆角 R1,2 个 φ2 孔,孔距 22 mm 耳片各宽 4.2 mm、厚 2 mm、高 14.5 mm 耳孔 φ2,中心距 28 mm,孔内侧距耳片内边 0.2 mm Remix ideas 加宽耳片内侧以增加强度 恢复 U 型侧壁
ServoLink is a compact single-bar crank arm for SG90 micro servos. One end carries a 21-tooth spline socket that grips the servo output shaft. The other end has a 3.2 mm round hole for a linkage pin or screw. The part is flat and printable without supports. Dimensions Hole centre to centre: 12 mm Thickness: 4 mm Left hole: SG90 spline, about 4.9 mm across the teeth Right hole: 3.2 mm diameter Hub: 9 mm round, arm end: 7 mm round, with softened edges Print notes PLA, printed flat, no supports The spline is sized close to nominal. Scale the hole slightly if your printer runs tight or loose.
What it's for A one-piece floor cradle that holds a triple 12V socket adapter horizontally under a dashboard. The front and top stay open, so the sockets and power switches remain reachable, and side windows keep the side USB ports clear. Dimensions Adapter: 100.4 x 60.85 x 31.72 mm, about 1 mm clearance Side walls: 3 mm thick, 14 mm tall Side windows: 18 mm long, centred 51.38 mm from the front (plus 1 mm clearance) Back lip: 12 mm tall with reinforced corners Mounting ears: 16 mm each end, countersunk screw holes Remix ideas Change the window length to fit a different USB port. Add a third screw hole at the back. Lengthen the ears for wider mounting.
