Under-Cabinet Mug Rack Right Half, 4 Hooks, 166 mm
Created today
Description
The right half of an under-cabinet mug rack: a 166 × 130 mm plate that mounts below high kitchen cabinets and carries four J-hooks for hanging mugs. It is one of two halves that make up the full 8-hook rack, and it has a recess on its cabinet-side face where a 60 × 80 × 4 mm splice plate drops in to join it to the left half — that plate and the left half are separate parts, not included here. The piece is 48 mm deep including the hooks and fits an 18 × 18 × 18 cm bed on its own.
Specs
- Size: 166 × 130 mm plate, 48 mm deep with hooks; fits an 18 cm print bed.
- Hooks: 4 on this half, in two staggered rows at roughly 85 mm spacing. Each is a 12 mm-wide J-hook with a 45° underside brace and a lip at the tip.
- Joint: recess on the cabinet-side face sized for the 60 × 80 × 4 mm splice plate, which also carries the cabinet screws that tie the seam together.
- Screw holes: countersunk, 4.5 mm, on the cabinet-side face.
- Plate thickness: 8 mm, sized for loaded mugs.
- Orientation: lies flat on its bed face with the hooks pointing up; no supports needed under the plate. The hook lips overhang slightly, so check them in your slicer before printing.
- Print settings: at least 4 perimeters and 40% infill or higher.
- Material: PETG preferred over PLA for long-term load on the hooks.
- Mounting: screws must reach the cabinet frame or solid wood, not just thin panel; mount with the recessed face down.
Images
More like this
Explore more in Kitchen & Bathroom →
Staggered 6-Mug Wall Rack
A heavy-duty wall rack designed to hold six mugs by their handles. The 280mm backplate staggers the layout into two distinct rows, ensuring wide ceramic rims have clearance and don't collide. Each peg tilts 12 degrees upward from the base to keep cups from sliding off under vibration. Remix Parameters Peg Dimensions: Built at 50mm long and 12mm thick for chunky handles. Shrink the diameter if you want to hang delicate teacups, or extend the length to stack espresso cups. Layout Grid: Peg centers are spaced roughly 90mm apart horizontally. The hull points can be compressed if you are short on wall space. Mounting Interface: Currently anchored by four 4.5mm countersunk screw holes. These can easily be swapped for slotted keyholes if the rack needs to be removable. Material & Strength: The pegs feature a 22mm flared base for leverage. If printing in a rigid, brittle filament like PLA, expanding that base diameter will add shear strength to the bottom row.
GlideTrak — Under-Shelf Stemware Rack
GlideTrak is an under-shelf stemware storage block designed to securely hold up to four standard wine glasses upside down by their stems. The dual-channel architecture features a continuous track that flares wide at the opening, allowing smooth, one-handed retrieval and stowing of glasses without requiring precise visual alignment. Engineered as a robust mounting block, it secures flush against the underside of a cabinet while maintaining a clean profile. Features Flared Entry: The stem slot narrows from a 14 mm flared opening down to a 9 mm continuous track, guiding standard stems seamlessly into place. Concealed Mounting: Six countersunk holes with screwdriver access tunnels provide secure upward mounting, hiding the screw heads deep within the block. Support-Free Printing: Engineered to be printed standing vertically on its flat back wall, allowing the internal cavities to form cleanly without the need for support material. Dimensions Overall Footprint: 212 mm wide × 170 mm deep × 22 mm thick. Base Clearance: 82 mm wide internal cavity per channel to accommodate standard glass bases. Stem Track: 9 mm track width, expanding to a 14 mm flare at the front entry.
Cucharilla de dos piezas con conector
What it's for Mango curvo tipo banana y conector independiente con dos pestañas flexibles. El conector encaja con un clic en el alojamiento del mango y se retira pellizcando las pestañas a través de las ventanas laterales, sin herramientas. Dimensions Mango: 120 mm de largo, 25 mm de ancho en la base y 20 mm en la punta, 16 mm de grosor. Alojamiento: 16 × 6 mm, 23 mm de profundidad. Conector: núcleo de 22 mm, 5,6 mm de grosor, brazos de 1,6 mm con resalte de clic. Ventanas laterales de 4 mm donde se aloja el resalte. Remix ideas Añadir una cabeza de cuchara en la pestaña tope del conector. Ajustar el grosor de los brazos (1,6 mm) para un clic más suave o más firme. Cambiar el radio de curvatura del mango.

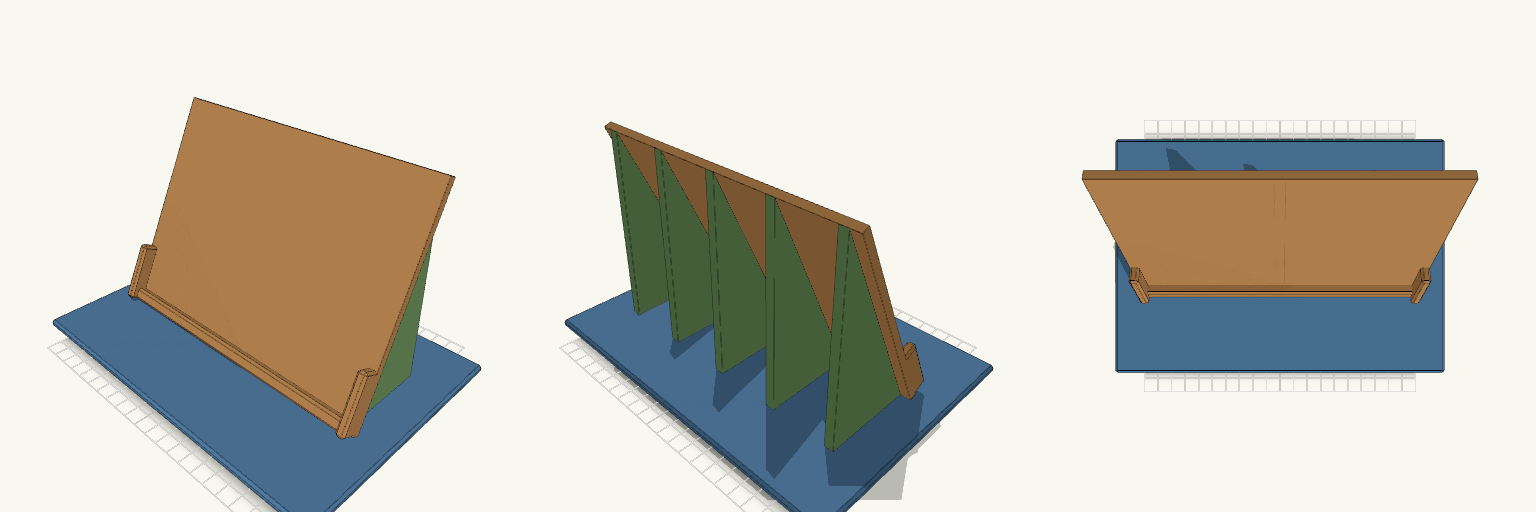

65° Kitchen Counter iPad Stand
