מנורת פסים מעודכנת להדפסה

Made by MagentaLlama

Created 1 months ago

Decor & Displaylamp-basethreaded-assemblyled-pucka1-minino-supportswire-routing
Remix this model →

Remixed once

Description

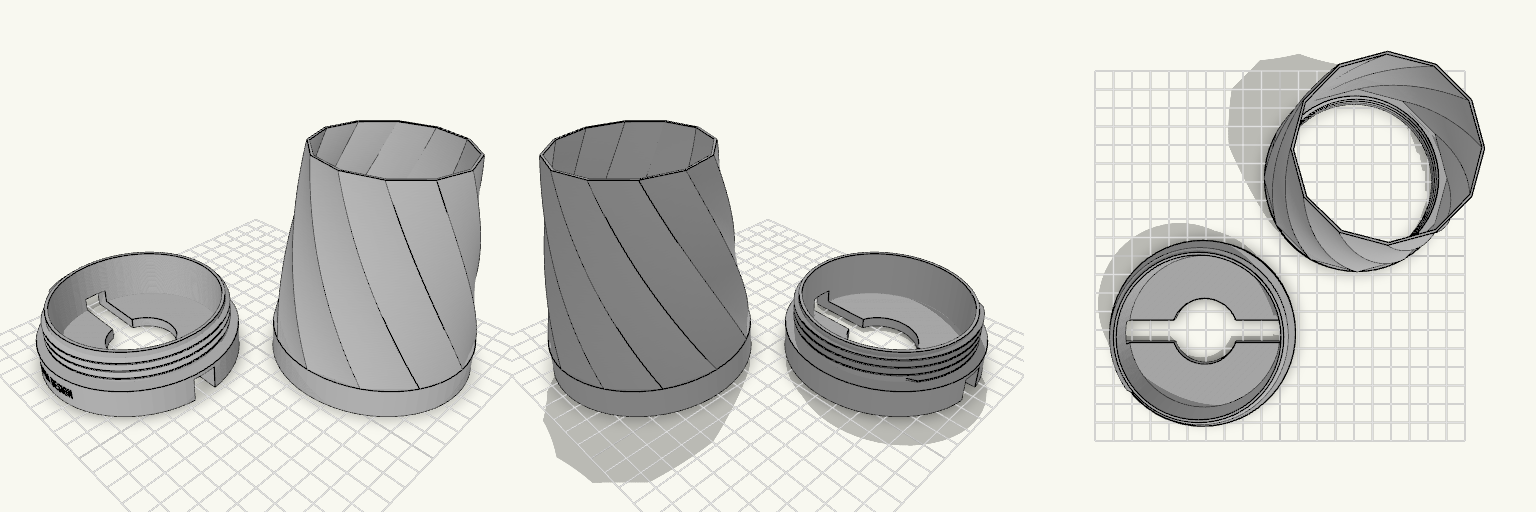

A two-piece twisted table lamp designed to thread together securely and house a standard 40mm LED puck. The base features a hollow core and wide exit channel for seamless wire routing, accommodating thick braided cables and USB plugs. The shade uses a 32-rib Bezier profile for a full teardrop volume without requiring print supports.

Fitment and Clearances

  • Print Volume: Scaled to comfortably fit 180mm print beds (perfect for Bambu A1 Mini) when sliced as separate objects.
  • Light Pocket: 42mm final inner diameter to securely drop in a 40mm round LED.
  • Mating Interface: Fully modeled threaded collar for a self-locking, hardware-free assembly.
  • Cable Routing: Base features an oversized bottom channel and center bore to clear USB-A connectors.
