W201 US-Spec Headlight Bracket
Created today
Description
Inner bulb bracket patterned for Mercedes-Benz W201 (190E) US-spec headlight assemblies.
This unit replaces cracked or heat-warped originals, seating directly into the outer housing and carrying the inner bulb contour.
Fitment Measurements
- Overall Footprint: 105.0 mm wide × 185.0 mm tall
- Top Mounting Centers: 68.0 mm apart (4.5 mm bore)
- Bottom Mounting Centers: 72.0 mm apart (4.5 mm bore)
- Frame Depth: 12.0 mm
Check your specific housing style before printing; this bracket specifically matches the hourglass reflector contour found in the US-spec assemblies, not the Euro-spec single-piece glass reflectors. Printed in a high-temp material (ASA or PC) to survive engine bay and halogen bulb heat.
Images
More like this
Explore more in Automotive, RC & Hobby →
Lego piece for wagon door runner with thinner teeth bit slightly smaller
Wagon door runner to replace 3 off 15208 bricks Version with slightly too large slope

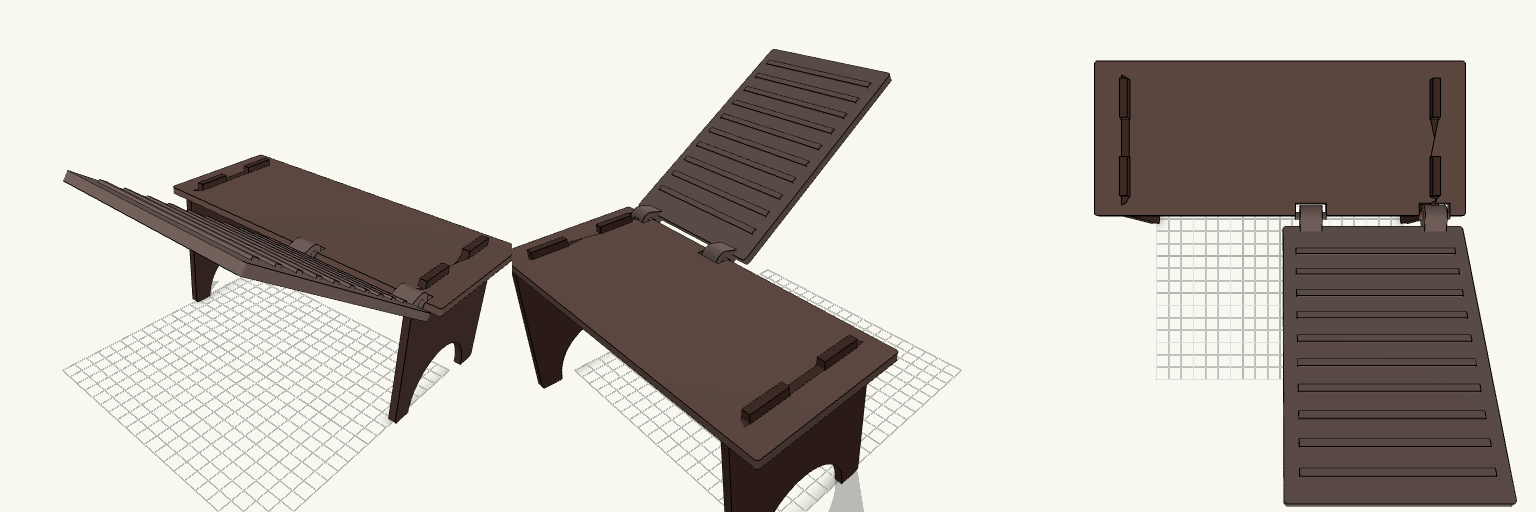

Flat-Pack Turtle Dock
