AeroGuard — Latticed Prop Guards
Created today
Description
Introducing AeroGuard, a lightweight protective ring designed to keep DJI Mini 3 flights safe around trees and tight spaces. The slanted, latticed airflow design reduces overall weight and minimizes downdraft interference, ensuring the drone remains agile while shrugging off minor impacts.
Features
- Optimized Clearance: 100mm inner diameter provides a safe 5mm buffer around standard 90mm propellers.
- Aerodynamic Profile: Slanted lattice cutouts allow thrust to pass through the guard ring smoothly.
- Snap-Fit Mounting: Integrated C-clip securely snaps over a standard drone arm.
Print Notes
- Print flat on the plate.
- A durable, impact-resistant filament like PETG or an engineered PLA is recommended to survive branch encounters.
Images
More like this
Explore more in Automotive, RC & Hobby →
Camper Electrical Socket Cover
A flush-fitting protective cover for a standard electrical socket, designed to keep out dust and debris when not in use. It features a built-in knuckle hinge and a snap-fit latch to keep the flap securely shut during travel. Print and Fit Overall Dimensions: 60 × 60 × 20 mm Internal Chamber: 48 × 48 × 17 mm deep Mounting Pattern: Four 4 mm holes spaced 48 mm apart Clearance: 0.5 mm around moving parts — prints in three separate pieces (frame, flap, and pin) for easy assembly without fused hinges.
Kid-Sized Palm Repulsor
A scaled-down version of the standard palm repulsor, proportioned specifically for a child's hand. Design Notes Overall width is roughly 57 mm to sit comfortably flat across a smaller palm. The side mounting slots are sized to accept a standard 1/2-inch elastic strap. Printed as three separate pieces to allow for distinct colours without painting.
Snap-Fit Poultry Band
A heavy-duty, flex-to-fit poultry leg band designed for easy application on turkeys. Customizing the Fit Band Diameter: Currently scaled for roughly a 1-inch (25.4mm) leg, making it suitable for mature turkeys. Band Width: The height along the leg is half an inch (12.7mm). The Hinge: The back of the ring thins out to 1mm to create a living hinge. You can thicken this if your material is exceptionally soft, or thin it further if you are using a stiffer PLA. The Lock: Features a horizontal bulb snap-fit. The locking pin squeezes through the entry gap and clicks into an enclosed cavity, keeping it secure even during movement. Adjust the bulb diameter or cavity clearance depending on your printer's tolerance.
Lego piece for wagon door runner with thinner teeth bit slightly smaller
Wagon door runner to replace 3 off 15208 bricks Version with slightly too large slope

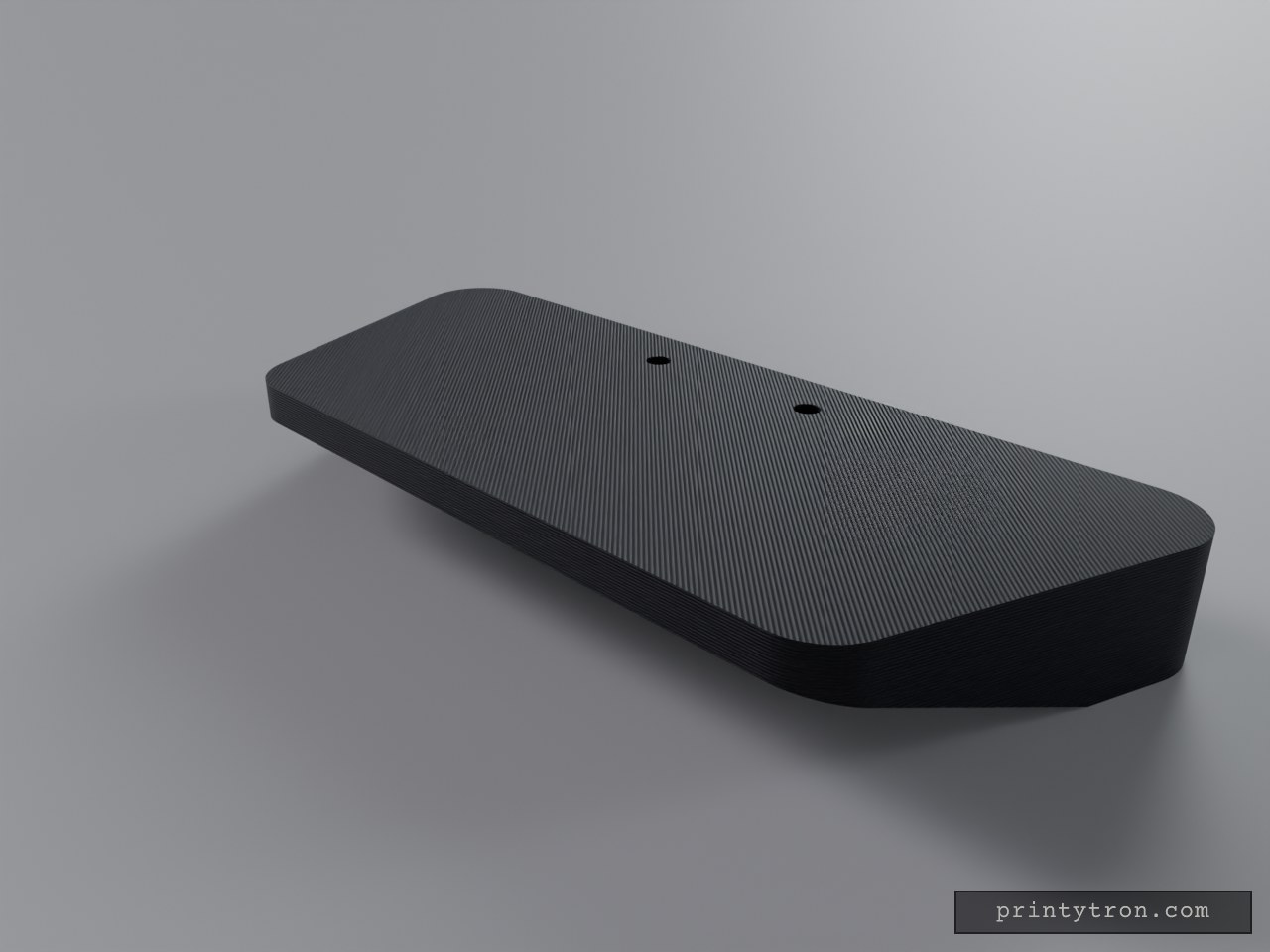

Traxxas Slash Wedge Front Bumper
