HC-SR04 & M3 Robot Head Prototype
Created today
Description
The main sensor and display housing for the AuraZex prototype. Built in two halves for flat-on-bed FDM printing, the front shell handles all structural mounting while the rear acts as a removable service panel.
Interface Checklist
- Sensors: Dual 16.5mm bores on 26mm centers (fits standard HC-SR04 ultrasonic modules).
- Display: 50x25mm recess with an integrated 2mm interior lip (46x21mm through-hole) to seat a rigid screen.
- Base Mount: 30x30mm rectangular feed-through, surrounded by an M3 four-hole bolt pattern (44x36mm spacing). Shifted off-center to clear the split line.
- Assembly: Two integrated 4mm alignment pins. Requires four M3x15mm screws to fasten the rear service panel.
Verify your neck bracket matches the 44x36mm M3 pattern before printing.
Photos
Technical views
More like this
Explore more in Automotive, RC & Hobby →
Friendly Robot Companion Head
A compact, friendly robot head prototype featuring a recessed smile display and twin ultrasonic sensor ports. Designed for small-scale desktop companions and educational robotics. Hardware Integration Sensors: Sized for standard HC-SR04 ultrasonic modules. Access: Rear service panel secured with four M3 screws for internal wiring. Mounting: 30 mm neck base with twin anchoring screws.
AuraZex 150mm Prototype Torso
Central torso shell for the small-scale AuraZex school prototype. Designed to accept the 30x30mm neck socket from the head unit and features mechanical shoulder mounts on the upper sides. Mating Surfaces Bottom: Carries the exact 4x M5 bolt pattern and dual 12mm wiring pass-throughs to bolt straight onto the AuraZex Waist Bracket. Top: 32x32mm socket providing 1mm clearance for the 30x30mm head connector. Front: Proportionally scaled 120x84mm landscape recess for the tablet, with a central wiring pass-through. Rear: Removable service panel secured by four M3 screws. Prints in FDM with 3mm structural walls and internal component standoffs already placed on the inner front face.

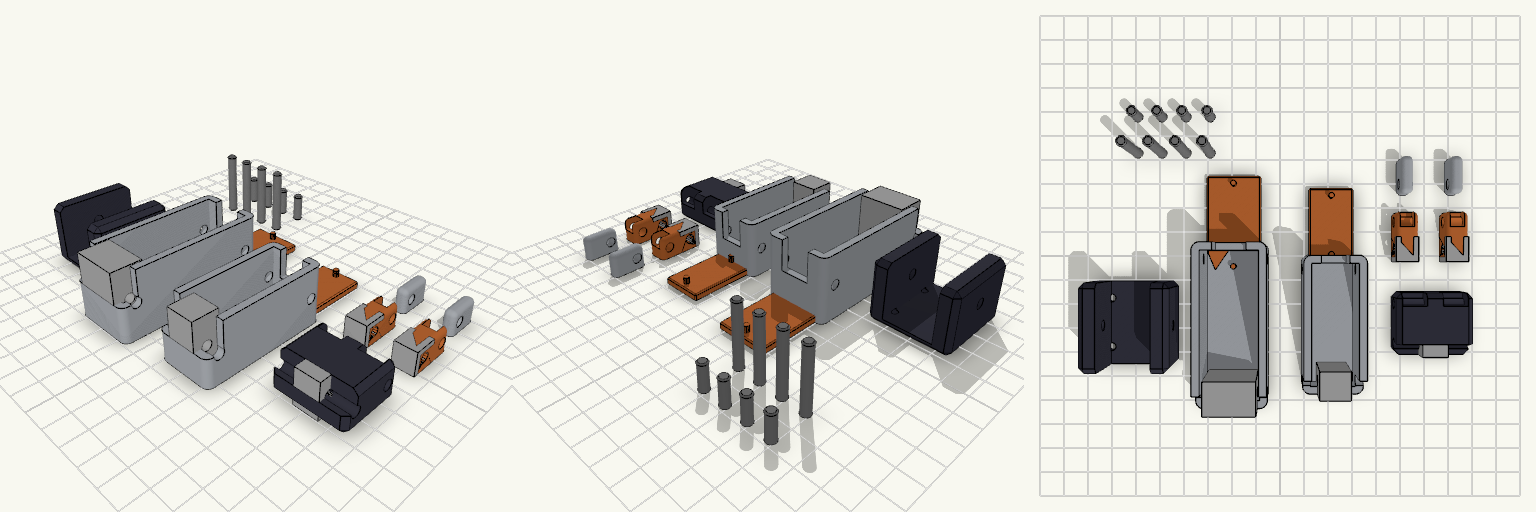

AuraZex Cybernetic Prototype Arm
