RigPot — Bankstick Jar with Rig Loops
Created today
Description

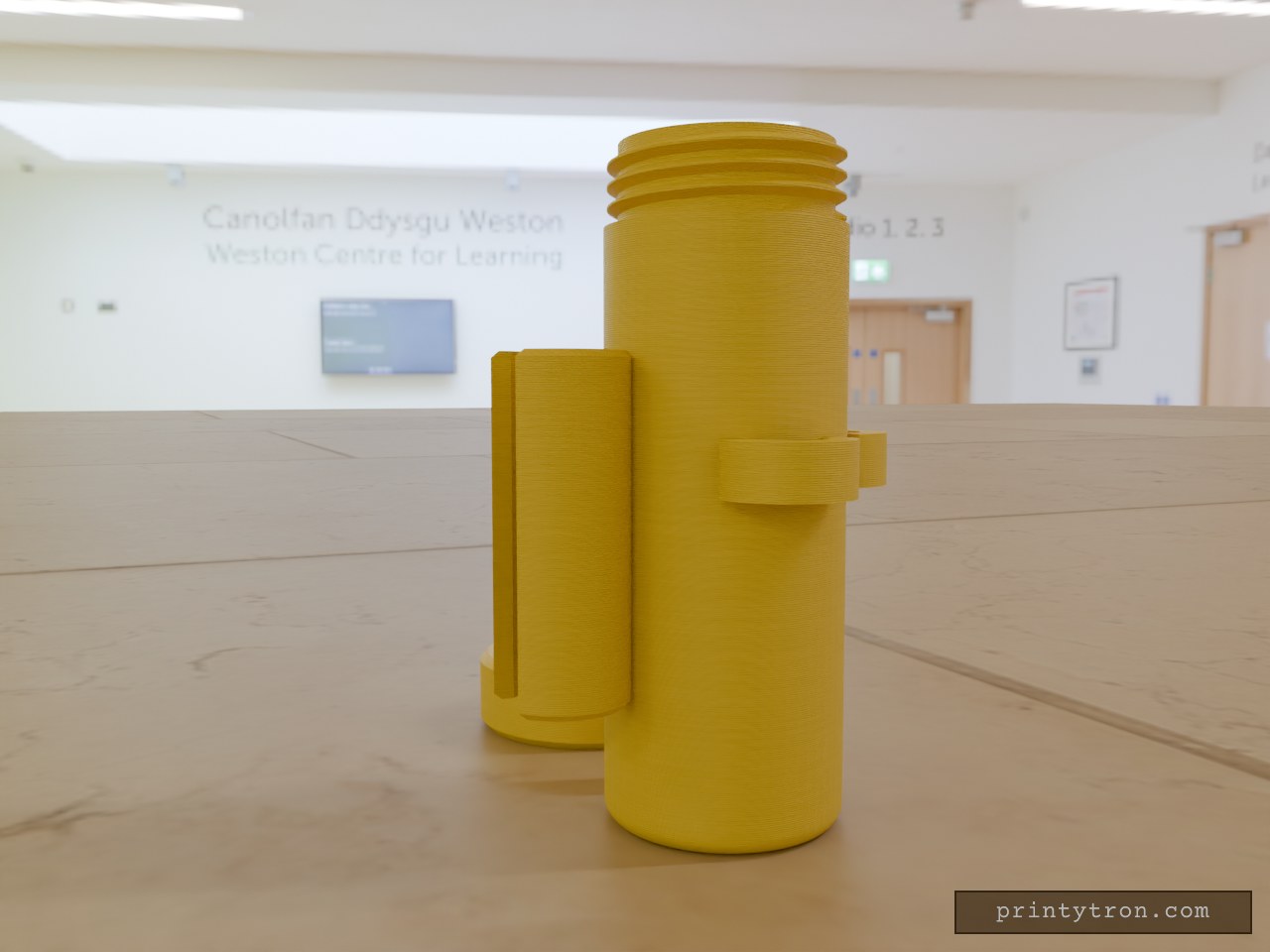

RigPot is a 100 mm screw-lid jar with a 30 mm bore, built to ride on a 15 mm bankstick and keep carp rigs organised. A 50 mm side clip grips the stick, and three half-round loops on the remaining sides of the jar hold rigs.
Features
- 30 mm inside diameter, 100 mm tall
- Screw-on lid, printed alongside
- 50 mm clip with open slot for a 15 mm bankstick
- Three half-circle loops, each joined to the jar wall at both ends, spaced at the other three quarters
Print notes
- Loops are flat half-rings, 8 mm tall, no supports needed beyond the jar itself
- Thread clearance is untested; adjust if the lid is tight
