Skeletal — Open-Frame Solar Tracker
Created today
Description
Skeletal is a minimal-plastic, screw-free single-axis solar tracker: an open-frame base, a snap-in SG90 servo holder, a rotating platform and a ribbed mock solar panel, with a front bracket that holds two LDRs behind a central divider.
Features
- 1.2 mm walls and an open-frame base to keep filament use low
- Servo holder with small chamfered snap lugs that grip the SG90 body, so it clicks in and pulls out without tools
- Cable slot from the base up to the rotating platform
- Panel centred on the rotation axis, with a raised rim, cell lines and a light ribbed underside
- Two LDR openings with a vertical divider in the front sensor bracket
Print notes
- Printed flat in PLA, 0.4 mm nozzle, 0.2 mm layers
- Nano, SG90, horn and LDR dimensions are nominal. Measure the real parts and adjust the values at the top before printing.
Images
More like this
Explore more in Desk & Tech →
Fidget Spinner Planetario Ø70 mm
Fidget spinner a ingranaggi planetari stampabile in un solo pezzo (print-in-place), diametro esterno 70 mm, con ingranaggio solare centrale, 5 satelliti e anello esterno dentato internamente. L'anello è alleggerito da 10 fori passanti e non ha coperchi, così gli ingranaggi restano visibili. Diametro esterno: 70 mm, spessore 8 mm Modulo 1,5; solare 15 denti, satelliti 10 denti, corona 35 denti Denti elicoidali a spina di pesce (25°) che trattengono i satelliti senza assi Gioco sui denti: 0,25 mm Fori centrali Ø7 mm (solare) e Ø5 mm (satelliti) per alleggerire Stampa piatta, senza supporti; PLA o PETG

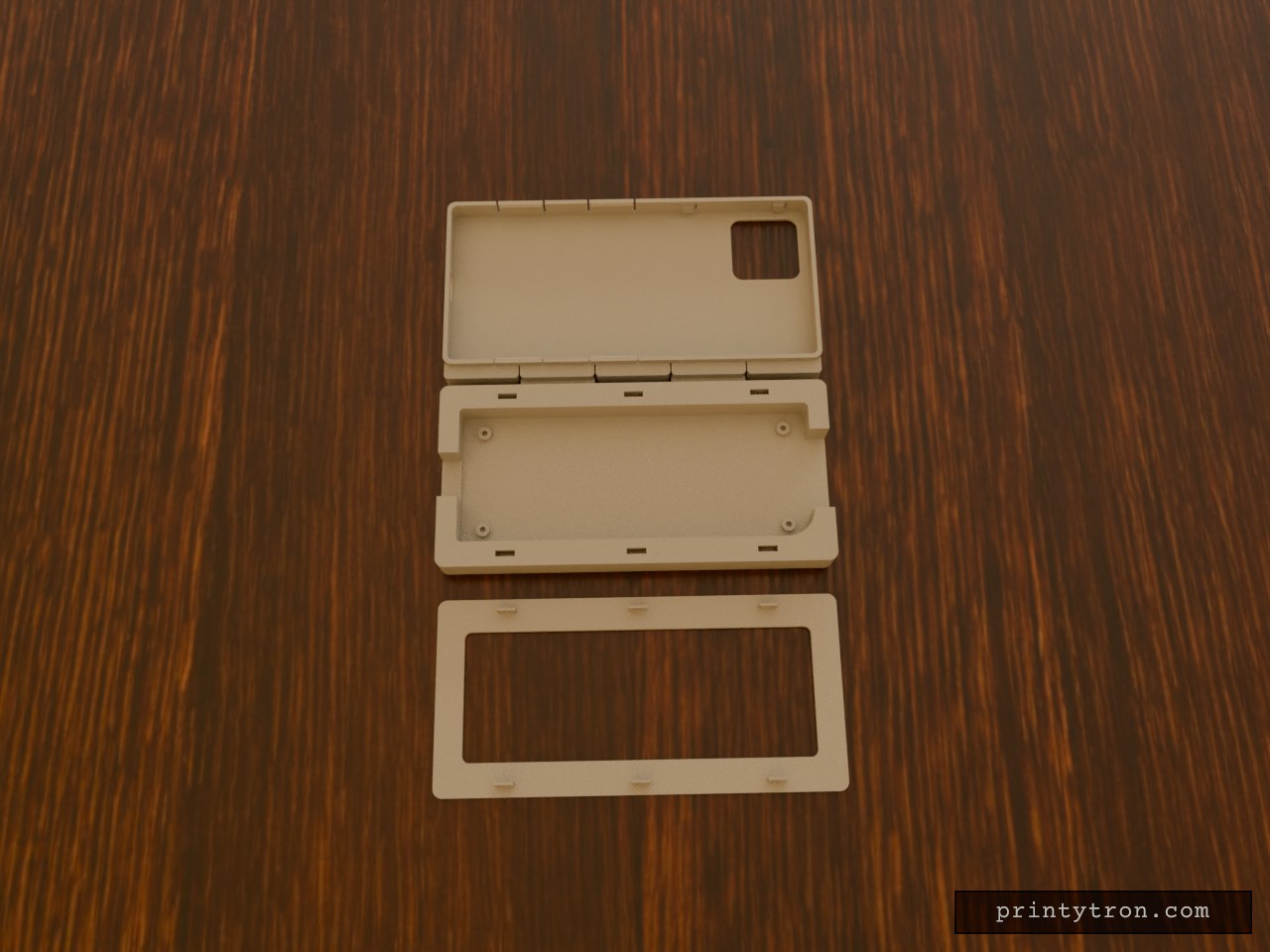

FoldDeck — Phone Shell and Printed-Hinge Keyboard Cover
