20 mm Round Hollow Pipe, 136 mm Long
Created today
Description
A round hollow pipe with a 20 mm outer diameter, a 16 mm bore and an even 2 mm wall, 136 mm long and open at both ends. It serves as a sleeve, spacer or bushing stock, or as a straight run in small frames, racks, handles and standoffs. At 136 mm it prints as one piece on a common print bed, with the length running along the plate.
Specs
- Outside diameter: 20 mm
- Bore: 16 mm, centered
- Wall thickness: 2 mm, even all round
- Overall length: 136 mm
- Both ends open, full length through
- Rests on the build plate with the length along the plate
Printing notes
- 136 mm length fits standard beds without splitting into segments.
- Vertical orientation needs no support inside the bore; horizontal orientation holds truer round but needs support in the bore.
- The bore is centered, so the wall is even all round where concentricity matters.
Images
More like this
Explore more in Home & Fixtures →

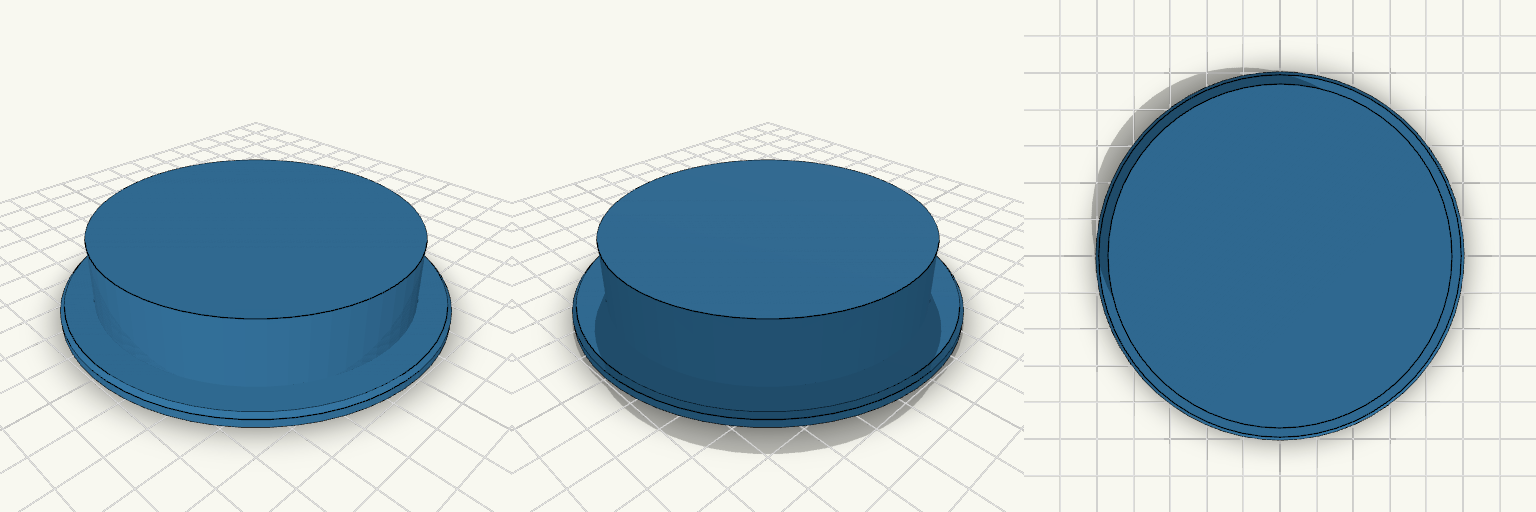

83mm Desk Grommet with Sealed Hollow Body
A one-piece desk grommet for an 83 mm hole. The barrel drops through the desk and the flange rests flat on the surface, closing off the hole at both ends with 3 mm caps. The interior is a sealed hollow rather than solid material, so the part uses little filament for its size. There is no cable passage through this version — the centre is closed, so it works as a clean hole cover rather than a cable outlet. Desk hole: 83 mm Barrel: 82.6 mm outside diameter, 20 mm tall Flange: 99 mm diameter Wall and cap thickness: 3 mm Interior: sealed hollow cavity Fit: desk tops up to about 17 mm thick Print: one piece, no supports; the enclosed cavity will bridge internally near the top of the void Overall footprint on the plate: 99 × 99 × 20 mm
Wall Shelf, 20 cm Glue-On
A small wall shelf that sits flat against the wall and glues on, with no drilling and no screws that miss the stud. The tall back plate gives the adhesive a big flat face, and two triangular gussets stop the front edge from sagging or peeling off. Key numbers Shelf top: 200 mm long x 80 mm deep x 4 mm thick Back plate: 200 x 40 mm, 4 mm thick, flat on the wall side Two gussets, 4 mm thick, each 34 mm tall Print: shelf upright on its back plate or flat on the top, no supports needed with the plate down; PETG or PLA, 3+ perimeters Glue: construction adhesive or mounting tape on the back plate face
Bote de basura innovador
Bote de basura con tres compartimentos para orgánicos, reciclables y basura general. Evita que todo termine mezclado en una sola bolsa y que haya que tocar la tapa con las manos sucias. Cada compartimento tiene su propia abertura con trampilla de color. Dos sensores al frente detectan a la persona que se acerca, una pantalla indica el nivel de llenado, un panel solar inclinado en la parte trasera alimenta la electrónica y cuatro ruedas permiten moverlo. Datos clave Diámetro del cuerpo: 240 mm; altura total sin panel: unos 346 mm Tres sectores de 120° separados por divisiones de 3 mm Aberturas de 76 mm de diámetro, una por compartimento Ruedas de 36 mm en cuatro soportes Impresión por piezas: cuerpo, tapa, chasis, ruedas y panel; paredes de 3 mm, sin soportes en el cuerpo La electrónica (sensores, pantalla, motores) no está incluida: el modelo solo aporta alojamientos y forma

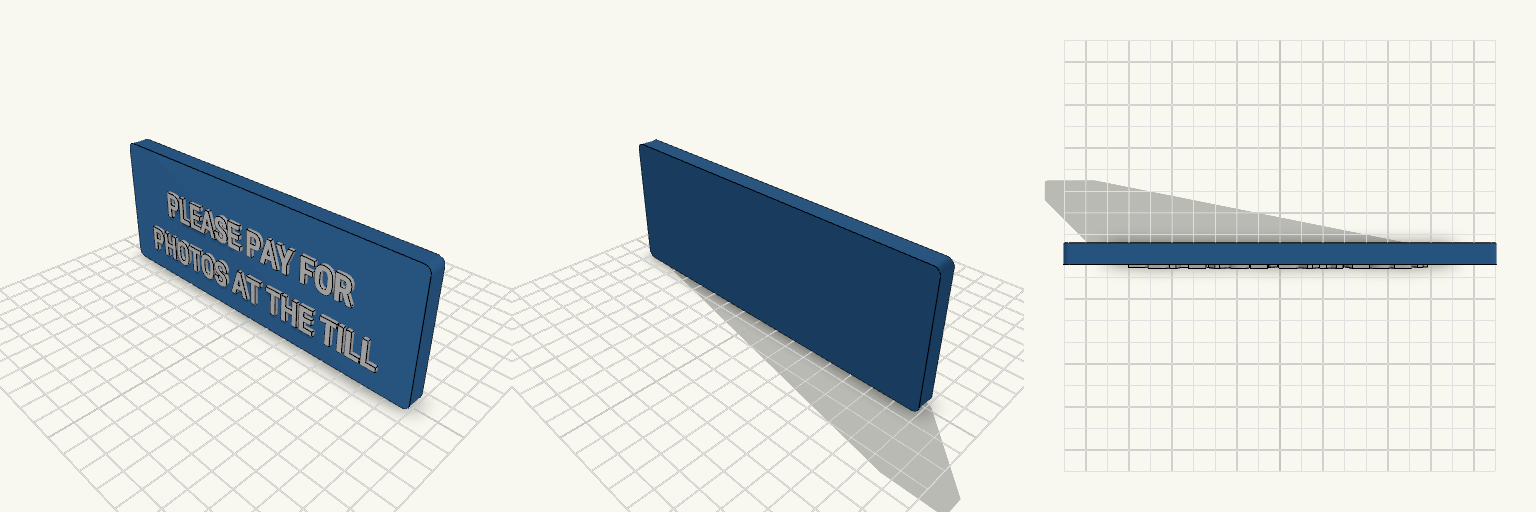

Pay For Photos At Till Sign
A "Please pay for photos at the till" sign for counters and shop windows, where customers walk off with prints without paying. Raised white lettering on a flat blue plate reads clearly from a distance. Print details Plate: 160 × 60 × 8 mm, rounded edges Lettering: two lines, raised 1.2 mm from the front face Print flat on its back; switch filament for the letters, or paint them No supports needed Attach with double-sided tape or foam pads
Vileda Broom Bar Hook
A bare metal broom top snags on everything, and the mushroom-shaped anchor on a Vileda stick gives a plain hook nothing secure to grab. This replacement end cap sleeves 20 mm down over the sharp top of the stick, then snaps over the anchor on four flexing collet fingers with locking pads. The open hook sits centered over the sleeve so the broom hangs straight on a 27 mm bar, and the flared mouth catches the bar without needing perfect alignment. Fit and print Broomstick: fits a 25.3 mm Vileda stick; the sleeve drops 20 mm over the sharp top edge. Anchor: clears the 13 mm mushroom cap and locks around the 10 mm shaft. The four fingers are 3 mm at their weakest point and taper to 4.5 mm at the base, with a 24 mm relief void and 2 mm slits so they splay outward without binding. Hook: open downward U-channel for a 27 mm bar, not a closed loop; the flared mouth funnels the bar in. Wall: solid plastic separates the flex mechanism from the hook cavity, and the hook sits raised clear of the flex chamber. Printing: lay the 2 mm flat plateau on top of the arch on the bed and print upside down — no supports, the internal ceiling bridges. Feel: the thicker fingers take a firmer push to seat, and hold once they do. Size: 31 mm wide, 63.5 mm deep, 118 mm tall as oriented for printing.

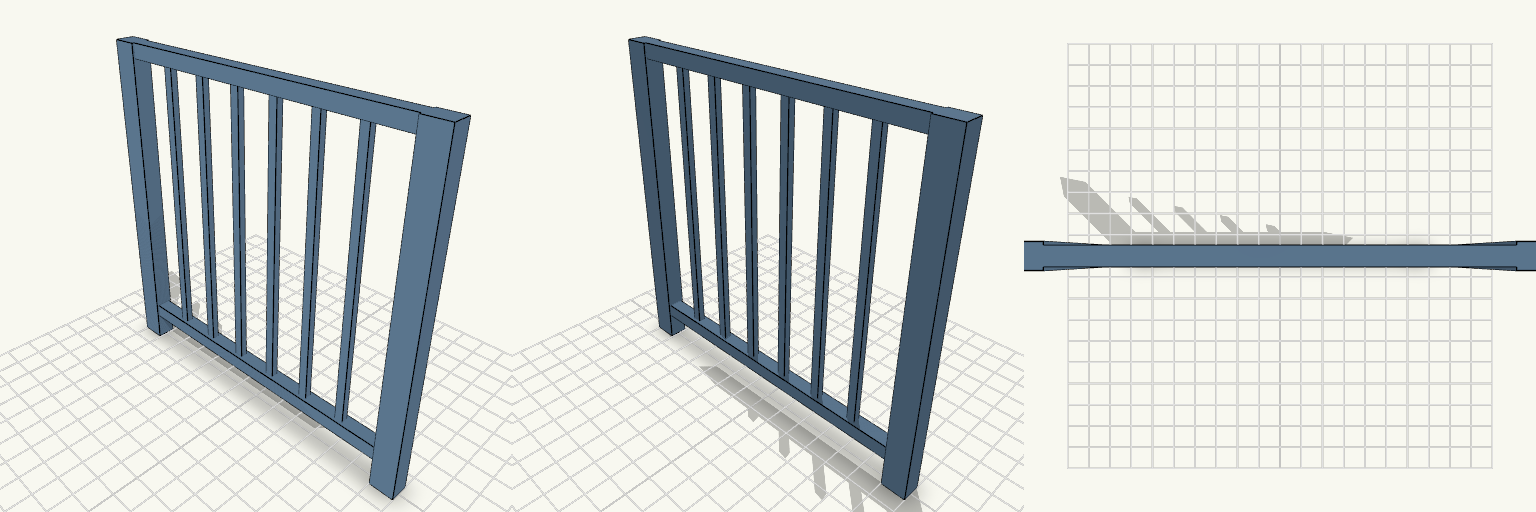

Veranda End Railing Bay
