70mm Desk Hole Cap, Hollow
Created today
Description
A hollow, fully closed cap for a 70 mm desk hole. A 69.6 mm barrel fits the hole and an 86 mm flange sits on the desk surface. Both ends are closed with 3 mm caps, and the interior is left empty to save filament.
- Barrel: 69.6 mm diameter, 20 mm tall
- Flange: 86 mm diameter, 3 mm thick, chamfered edge
- Caps: 3 mm solid at both ends
- Interior: sealed hollow, 63.6 mm diameter
- Print with the flange side down; no supports needed
Images
More like this
Explore more in Home & Fixtures →
Pool Noodle End Cap Plug
A pool noodle end cap that plugs the hole so water, sand and grit stay out of the foam, and the open end stops getting chewed up. The plug uses the same barbed shaft as the noodle connector, so it grips the foam instead of working loose. Key numbers Shaft: 22 mm diameter, 56 mm long, tip chamfered for easy starting Barb rings: four, 28 mm diameter, 14 mm apart, chamfered both sides Head: 70 mm diameter, 8 mm thick, rounded top edge, stops flush against the noodle end Sized for a roughly 25 mm centre hole; foam stretches over the rings Printing Print head-down on the plate, shaft pointing up No supports needed, the ring chamfers handle the overhang PETG or similar; 3 perimeters for stiffer barbs
100x59 Oval Body Hole Cover with Snap Clips
Push-in cover for a 100 x 59 mm oval opening in 1 mm sheet metal. The front plate is fully closed, with a 3 mm overlap flange all round (106 x 65 mm outer, 2.5 mm thick). A 2 mm wall locating frame (99.4 x 58.4 mm, 5 mm deep) centres the cover in the opening. Four flexible cantilever clips (two per long edge) have tapered lead-ins and 0.8 mm hooks that lock behind the sheet metal. Tool-free install and removal Single solid body, no screws or glue Print flange-side down in PETG or ASA
Vileda Broom Bar Hook
A bare metal broom top snags, and the mushroom-shaped anchor on a Vileda stick gives a plain hook nothing secure to grab. This replacement end cap sleeves 20 mm down over the sharp top of the stick, then snaps over the anchor with long leaf-spring arms and locking pads. The open hook sits centered over the sleeve so the broom hangs straight on a 27 mm bar, and the flared mouth catches the bar without needing perfect alignment. The hook arch is raised clear of the internal flex chamber, leaving solid plastic between the two cutouts. Fit and print Broomstick: fits a 25.3 mm Vileda stick; the sleeve drops 20 mm over the sharp top edge. Anchor: clears the 13 mm mushroom cap and locks around the 10 mm shaft; the 28 mm tall relief cavity gives the 1.75 mm leaf springs room to flex. Hook: open downward U-channel for a 27 mm bar, not a closed loop; the flared mouth helps catch the bar. Wall: solid plastic separates the flex mechanism from the hook cavity. Printing: lay the 2 mm flat plateau on top of the arch on the bed and print upside down; no supports, internal ceiling bridges. Material: PETG suits the flexing snap mechanism. Size: 31 mm wide, 63.5 mm deep, 118 mm tall as oriented for printing.

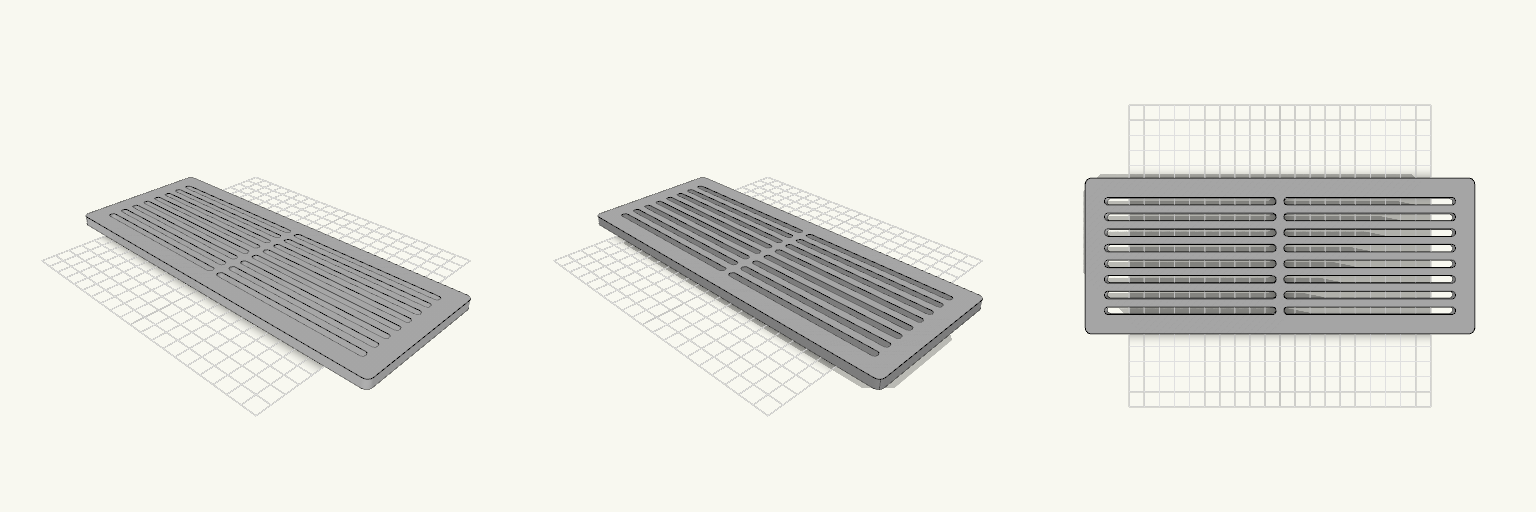

White 4 x 10 Inch Flat Vent Grill
