OO Scale Wooden Side Gate
Created today
Description
A 4mm scale (OO gauge) wooden side gate, complete with an outer frame. Features standard vertical planking on the front, Z-bracing on the back, and basic hinge and latch hardware.
Specs
- Scale: OO (4mm to 1 foot)
- Opening: 12mm wide
- Overall Frame: 15mm wide, 26mm high
- Orientation: Posts and rear bracing sit flat on the build plate for easy printing.
Images
More like this
Explore more in Automotive, RC & Hobby →

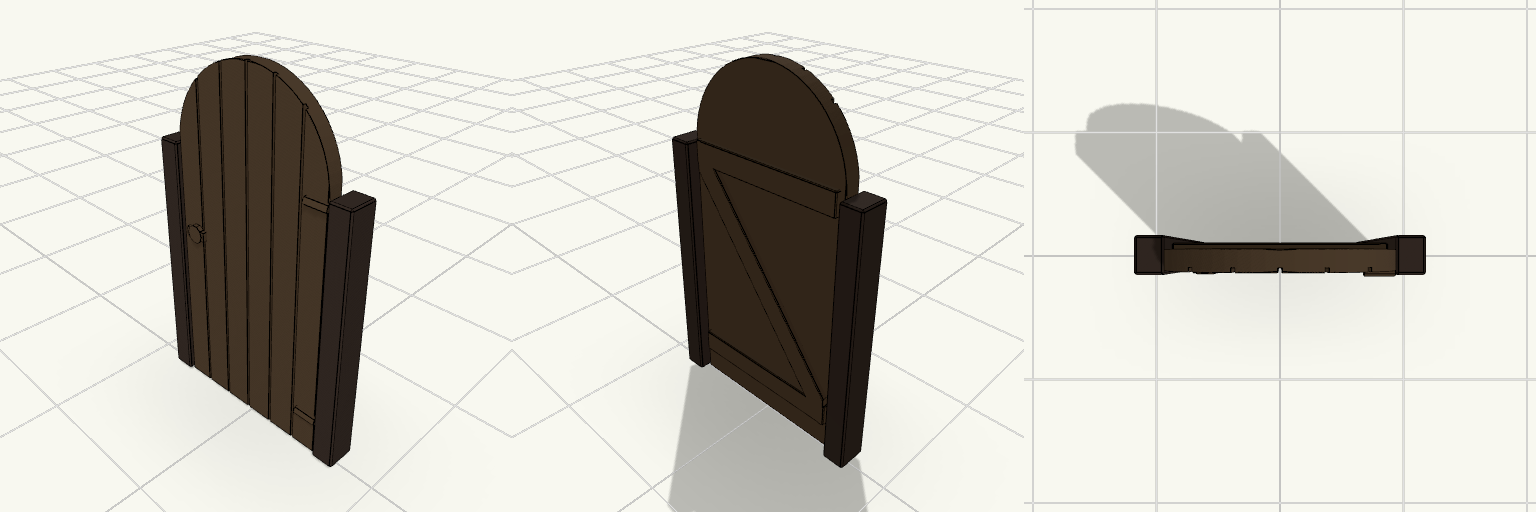

OO Scale Wooden Side Gate rounded top
