Slope — Apple Watch Bedside Dock
Created today
Description
Slope is a wedge-shaped charging dock that tips an Apple Watch back at 20°, so the display faces up and reads like a small bedside clock. The charging puck loads from underneath and sits just beneath the ramp surface, leaving only a thin skin between puck and watch. The cable leaves through a slot at the back, so the top stays clean.
Features
- 20° ramp surface, rising from a low front edge to a taller back
- Angled puck recess sized for a 45 mm disc about 9 mm thick
- Three small snap bumps that hold the puck in place
- Cable notch running out the back
- Flat underside that prints without supports for the body
Dimensions
- Footprint: 70 mm wide × 90 mm deep
- Height: about 14 mm at the front, about 47 mm at the back
- Puck pocket: 45.5 mm diameter, 9.4 mm deep
- Skin above the puck: 1.6 mm
Print notes
- Print with the flat base down.
- The pocket clearance is a starting point and has not been test-printed. Check the fit with your own puck and adjust if needed.
- PETG or PLA both suit a desk-side part.
Images
More like this
Explore more in Desk & Tech →
Platinenabdeckung 20x20 mm mit Öse
Abdeckung für eine 20×20×4 mm große D-förmige Platine mit Einrastnasen, Tasteröffnung und Schnuröse an der Rundung. Gesamthöhe 7,8 mm, Decke 0,8 mm, Wandstärke 1,8 mm Tasteröffnung 3,8 × 3,8 mm Öse: 6,5 mm Außendurchmesser, 3,2 mm Bohrung, 2 mm dick, bündig mit der Oberseite Öse sitzt mittig an der Rundung (Y = 0) auf der +X-Seite Empfohlen: transparentes PETG oder PLA
Skeletal — Open-Frame Solar Tracker
Skeletal is a minimal-plastic, screw-free single-axis solar tracker: an open-frame base, a snap-in SG90 servo holder, a rotating platform and a ribbed mock solar panel, with a front bracket that holds two LDRs behind a central divider. Features 1.2 mm walls and an open-frame base to keep filament use low Servo holder with small chamfered snap lugs that grip the SG90 body, so it clicks in and pulls out without tools Cable slot from the base up to the rotating platform Panel centred on the rotation axis, with a raised rim, cell lines and a light ribbed underside Two LDR openings with a vertical divider in the front sensor bracket Print notes Printed flat in PLA, 0.4 mm nozzle, 0.2 mm layers Nano, SG90, horn and LDR dimensions are nominal. Measure the real parts and adjust the values at the top before printing.
FoldDeck — Phone Shell and Printed-Hinge Keyboard Cover
FoldDeck is a clamshell-style phone-and-keyboard case built around a Galaxy A14 5G and a K808 Mini keyboard. The cover folds shut over the phone like a pocket flip-style mini laptop, and the hinge is printed as part of the design, so no pin, screw or other outside hardware is needed. Features Phone shell that replaces the phone's back, with snap hooks, a USB-C slot and flexing button covers Keyboard tray with screw posts for the K808 board Snap-on face plate with a window over the keys and touchpad Printed hinge: 3 mm round stubs on the tray knuckles seat in 3.6 mm blind bores in the shell knuckles Print notes Print the hinge parts with the stubs lying along the bed PETG or ASA is recommended for the snap hooks and hinge Port, button and camera positions are placeholders until measured
Ten-Port Keystone Panel With Fan
A 270 × 61 mm mounting panel with a 60 mm fan opening on the left and ten snap-in keystone ports on the right. A rounded, squircle-style notch is cut into one long edge near the right end. Remix hooks Notch span: runs from 216.25 mm to 258 mm along X, 15.25 mm deep in Y. Move either end to resize it. Corner radius: both inner corners use a 7 mm radius. Raise it for a softer shape; keep it under about 7.6 mm to stay within the notch depth. Corner material: the notch stops at 258 mm, leaving the right-end 3.5 mm mounting hole (5 mm from the end) fully surrounded. Keystones: 14.5 × 16 mm openings with a 1.8 mm front lip and rear clip relief. Dimensions are provisional, so test one jack before printing all ten. Pairs with: a cable-management bar or a fan grille over the 58 mm vent. It's meant for a particular 12U rack.
Fidget Spinner Planetario Ø70 mm
Fidget spinner a ingranaggi planetari stampabile in un solo pezzo (print-in-place), diametro esterno 70 mm, con ingranaggio solare centrale, 5 satelliti e anello esterno dentato internamente. L'anello è alleggerito da 10 fori passanti e non ha coperchi, così gli ingranaggi restano visibili. Diametro esterno: 70 mm, spessore 8 mm Modulo 1,5; solare 15 denti, satelliti 10 denti, corona 35 denti Denti elicoidali a spina di pesce (25°) che trattengono i satelliti senza assi Gioco sui denti: 0,25 mm Fori centrali Ø7 mm (solare) e Ø5 mm (satelliti) per alleggerire Stampa piatta, senza supporti; PLA o PETG

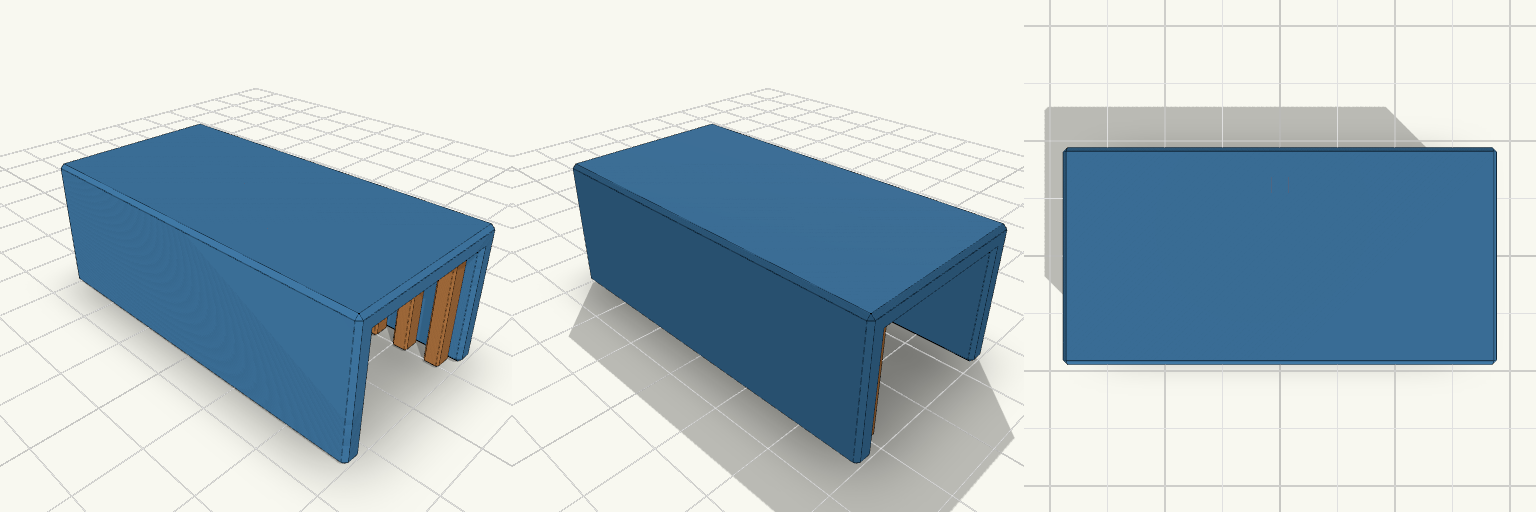

90mm USB Fan Guard Cloth Comb Clip
