White 4 x 10 Inch Flat Vent Grill
Created today
Description
Flat slotted vent grill, 10" x 4" with a thickness of 1/4". Two banks of eight through-slots are separated by a center rib for stiffness, inside a solid border.
- Size: 254 x 101.6 x 6.35 mm
- Slots: 8 per side, 5 mm wide, 112 mm long, rounded ends
- Border: about 10 mm solid on the long edges, 15 mm on the ends
- Print flat, no supports; PETG or ASA suits warm airflow
- Edges: 4 mm rounded vertical corners
Images
More like this
Explore more in Home & Fixtures →
108 mm Vent Grille Cap, Center-Rib Clearance
Closed 108 mm rounded-square cap for an installed round vent grille (about 99 mm body, 108 mm flange), with a dedicated recess over the raised center rib. Fit Fits over: round grille up to about 100 mm, flange up to about 101.5 mm square. Face: 4 mm, fully closed. Cavity: 100.5 mm round, 15 mm clearance above the grille, plus a 24 mm wide channel along X reaching 21 mm clear. Lip: 10 mm deep, 3 mm walls, 102 mm pocket, eight small friction bumps. Check before printing Measure the center rib's height and direction. The channel assumes it runs along X and stays under about 18 mm tall. Not compatible Flanges over 101.5 mm square or grilles wider than 100 mm.

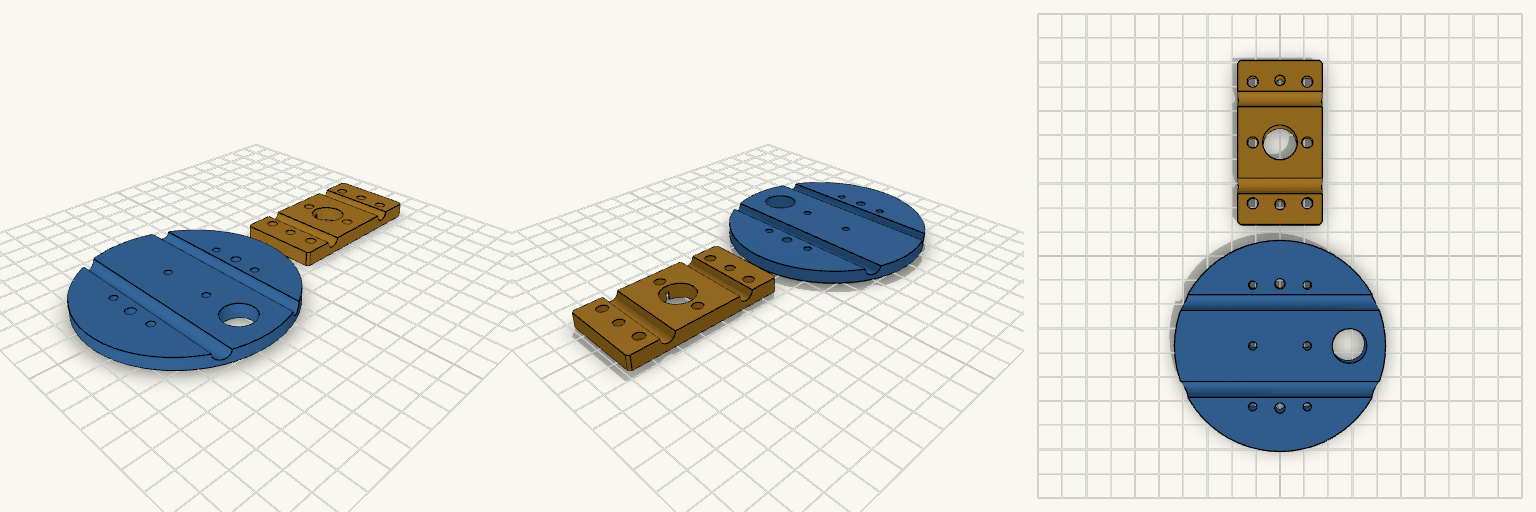

12V-Stabschiene 6 mm Klemmplatte für Ø80 Spot
Zweiteilige Trägerplatte für einen runden 220V-Spot mit 80 mm Basis auf einem 12V-Stabsystem: zwei parallele Stäbe Ø6 mm, 35 mm Mitte zu Mitte. Die Oberplatte trägt den Spot, die Unterplatte klemmt die Stäbe von unten dagegen. Passt auf Zwei Rundstäbe Ø6 mm, Abstand 35 mm Mitte zu Mitte (Nuten Ø6,3 mm) Runde Spotbasis Ø80 mm (Senkung Ø80,4 mm) Passt nicht auf Stäbe mit anderem Durchmesser oder anderem Abstand Spots mit abweichendem Lochbild: angenommen sind drei Löcher Ø4,5 mm auf Lochkreis 60 mm Vor dem Drucken prüfen Lochbild des Spots und Stabdurchmesser nachmessen. Montage Sechs Schrauben M4 von unten durch die Unterplatte (Senkung für den Kopf) in die Oberplatte; Bohrung Ø3,4 mm schneidet das Gewinde selbst. Kabeldurchlass Ø14 mm in der Mitte. Beide Teile liegen mit offenen Nuten nach oben auf dem Druckbett, ohne Stützen. Ein 220V-Spot an einer 12V-Schiene braucht eine saubere elektrische Trennung. Das Druckteil ersetzt keine Schutzisolierung.

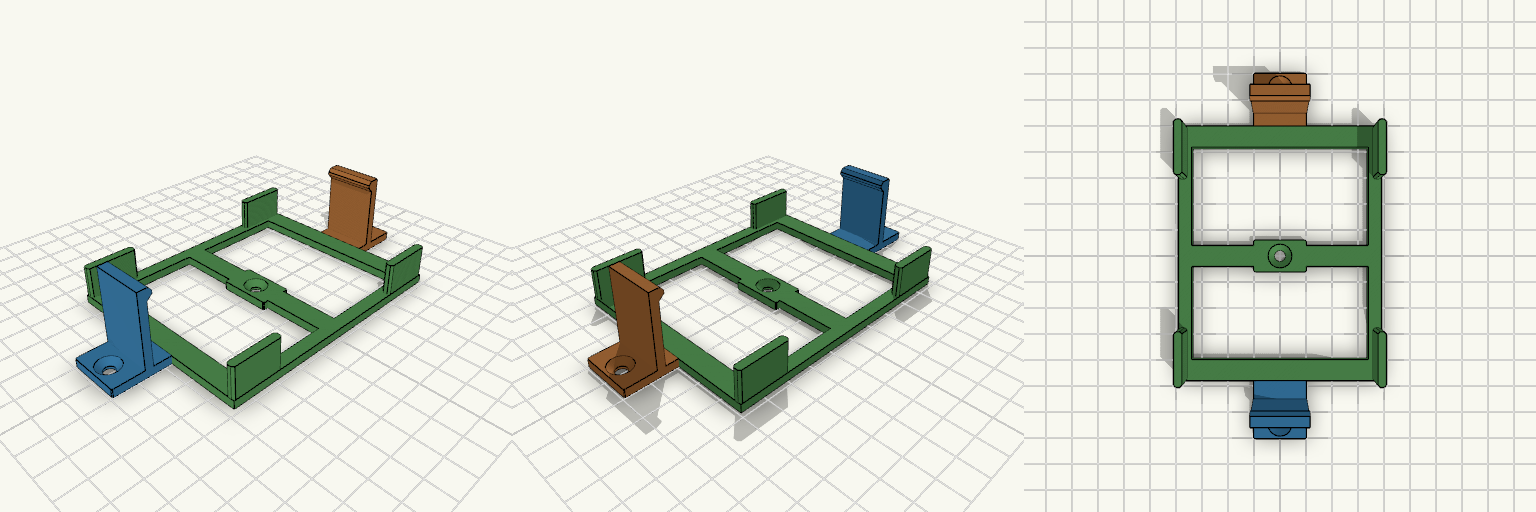

70 × 108 × 25.5 mm Box Snap-Clip Frame
