Capstop — Magnetic Wall Bottle Opener
Created today
Description

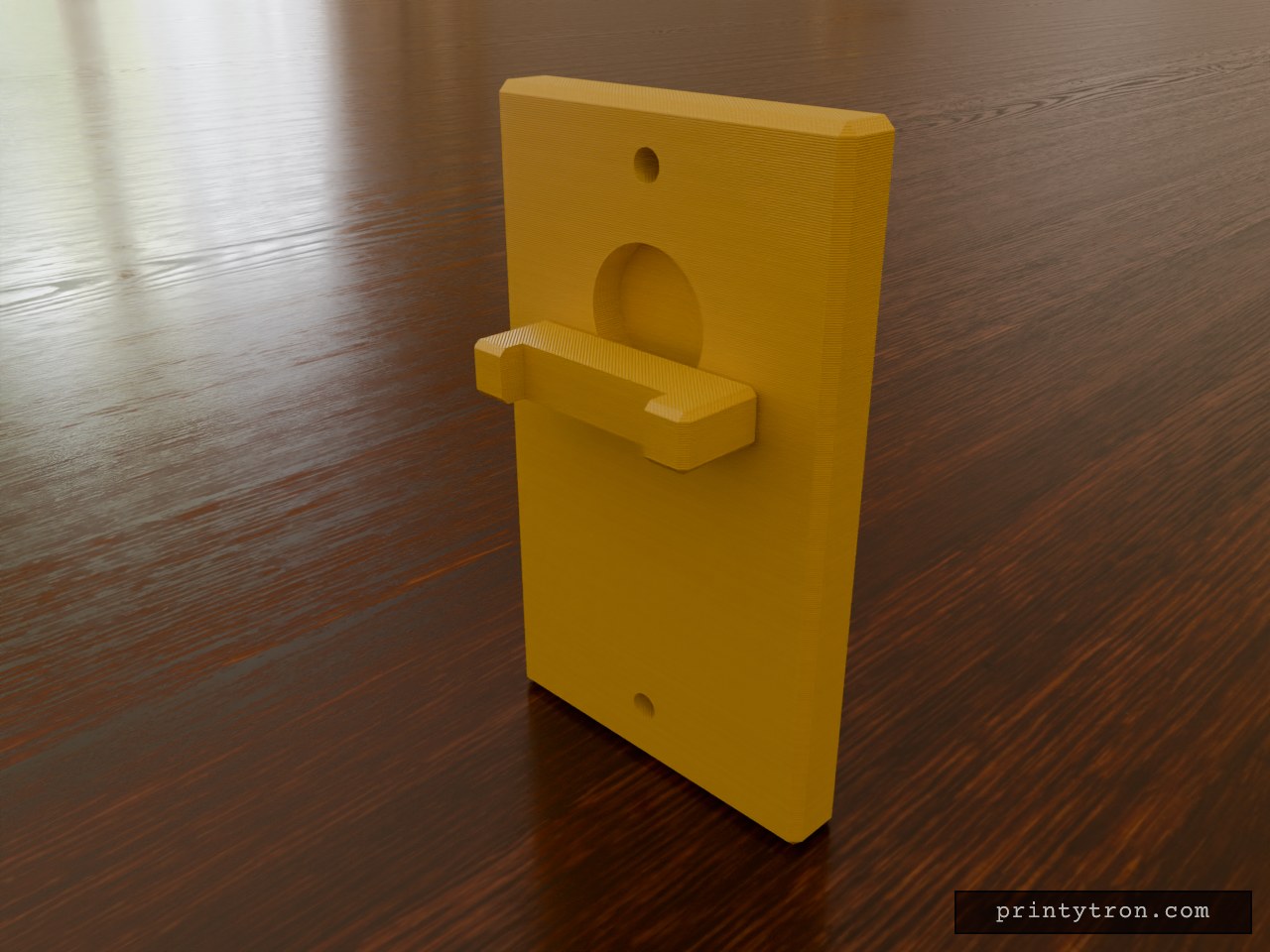

Capstop is a wall-mounted bottle opener built around a simple idea: the cap should not hit the floor. A flat back plate carries a cap-catching lip, and a recess behind the opening holds a disc magnet that grabs the cap as it comes off the bottle.
The magnet pocket is sized for a 20 mm diameter, 5 mm thick disc magnet, with a small clearance so it seats without forcing. Two countersunk screw holes let the plate sit flush against the wall.
Features
- Back plate, 60 mm wide and 100 mm tall, with chamfered edges
- Opener lip with a cap slot, projecting from the front face
- Magnet recess for a 20 × 5 mm disc magnet, located behind the opener
- Two countersunk screw holes for wall mounting
- Slim funnel and removable cup intended to sit below the opener to collect caps
Dimensions
- Plate: 60 × 10 × 100 mm
- Opener lip: 40 mm wide, 14 mm projection, 8 mm thick
- Magnet pocket: 20.4 mm diameter, 5.2 mm deep
- Screw holes: 4.5 mm shank, 9 mm countersink
Print notes
- Print the plate on its back or side; the opener lip prints best flat.
- PETG or ASA is suggested for durability against repeated cap contact.
- Secure the magnet with a drop of glue if the wall mount sees heavy use.
Photos
Technical views
More like this
Explore more in Home & Fixtures →
Wall Shelf, 20 cm Glue-On
A small wall shelf that sits flat against the wall and glues on, with no drilling and no screws that miss the stud. The tall back plate gives the adhesive a big flat face, and two triangular gussets stop the front edge from sagging or peeling off. Key numbers Shelf top: 200 mm long x 80 mm deep x 4 mm thick Back plate: 200 x 40 mm, 4 mm thick, flat on the wall side Two gussets, 4 mm thick, each 34 mm tall Print: shelf upright on its back plate or flat on the top, no supports needed with the plate down; PETG or PLA, 3+ perimeters Glue: construction adhesive or mounting tape on the back plate face
Vileda Broom Bar Hook
A bare metal broom top snags on everything, and the mushroom-shaped anchor on a Vileda stick gives a plain hook nothing secure to grab. This replacement end cap sleeves 20 mm down over the sharp top of the stick, then snaps over the anchor on four flexing collet fingers with locking pads. The open hook sits centered over the sleeve so the broom hangs straight on a 27 mm bar, and the flared mouth catches the bar without needing perfect alignment. Fit and print Broomstick: fits a 25.3 mm Vileda stick; the sleeve drops 20 mm over the sharp top edge. Anchor: clears the 13 mm mushroom cap and locks around the 10 mm shaft. The four fingers are 3 mm at their weakest point and taper to 4.5 mm at the base, with a 24 mm relief void and 2 mm slits so they splay outward without binding. Hook: open downward U-channel for a 27 mm bar, not a closed loop; the flared mouth funnels the bar in. Wall: solid plastic separates the flex mechanism from the hook cavity, and the hook sits raised clear of the flex chamber. Printing: lay the 2 mm flat plateau on top of the arch on the bed and print upside down — no supports, the internal ceiling bridges. Feel: the thicker fingers take a firmer push to seat, and hold once they do. Size: 31 mm wide, 63.5 mm deep, 118 mm tall as oriented for printing.
Holdfast — Curtain Rod Wall Bracket
Holdfast is a single-piece wall bracket for a 28 mm curtain rod. A flat 60x60 mm plate carries a 100 mm arm that ends in an open-top half-round cradle, so the rod drops in from above. A small set screw hole through the front wall of the cradle lets the rod be locked in place once seated. The cradle is sized at 28.5 mm inside diameter, giving a snug fit around a 28 mm rod without binding. The arm is kept compact and the cradle walls are thick enough to carry a set screw. Features 60 x 60 x 5 mm wall plate with chamfered edges Four countersunk screw holes (4.5 mm) for flush mounting 100 mm arm projecting from the plate 28.5 mm half-round cradle, open on top for drop-in rod loading 4.2 mm set screw hole through the cradle, level with the rod centre Print notes Tap the set screw hole by hand or use a self-tapping M4/M5 screw. Print with layers running along the length of the arm, since the arm is only 12 mm thick and works under leverage. Use PETG or a similarly tough material for load-bearing use. Parts Wall Plate Arm and Cradle
Cardboard Sign Corner Holder for Wall
A cardboard sign corner holder that ends the problem of taping or tacking a sign to the wall. The triangular pocket slips over a corner of 3 mm cardboard, like a photo corner, and the flat back takes a removable adhesive pad. Slot height: 3.4 mm for 3 mm cardboard Leg length: 40 mm per corner Back plate: 2 mm, flat side faces the wall Front lip: 1.6 mm, with a cut-out window Print: flat on the back, no supports, one per corner (4 for a sign)
Lifebuoy — Wall Key Rack
Lifebuoy is a wall-mounted key rack shaped like a beach lifeguard buoy, with a red body, white LIFEGUARD lettering and five sturdy hooks. Features 230 mm long stadium-shaped body, 70 mm tall, 14 mm deep Letters as a separate white piece set into a pocket in the red body Five round-tipped hooks along the lower front Two rear keyhole-style screw holes with counterbores Flat back for printing without supports Print notes Print the body and the letters in separate colours (PLA, 0.4 mm nozzle), back face down.

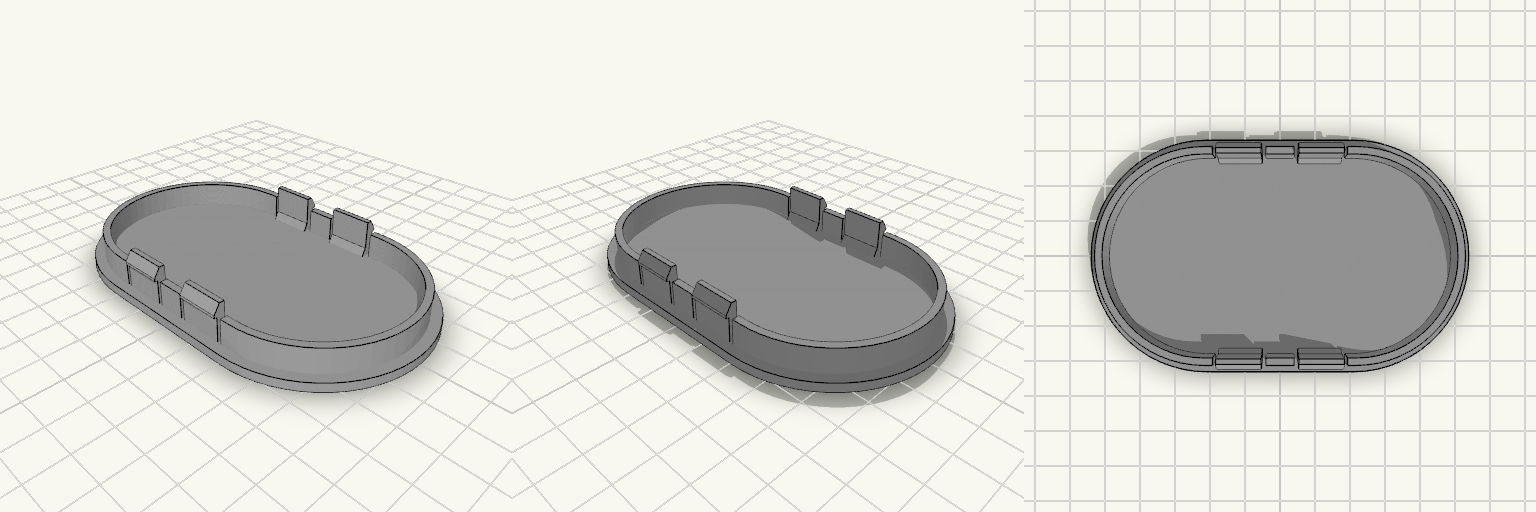

100x59 Oval Body Hole Cover with Snap Clips
